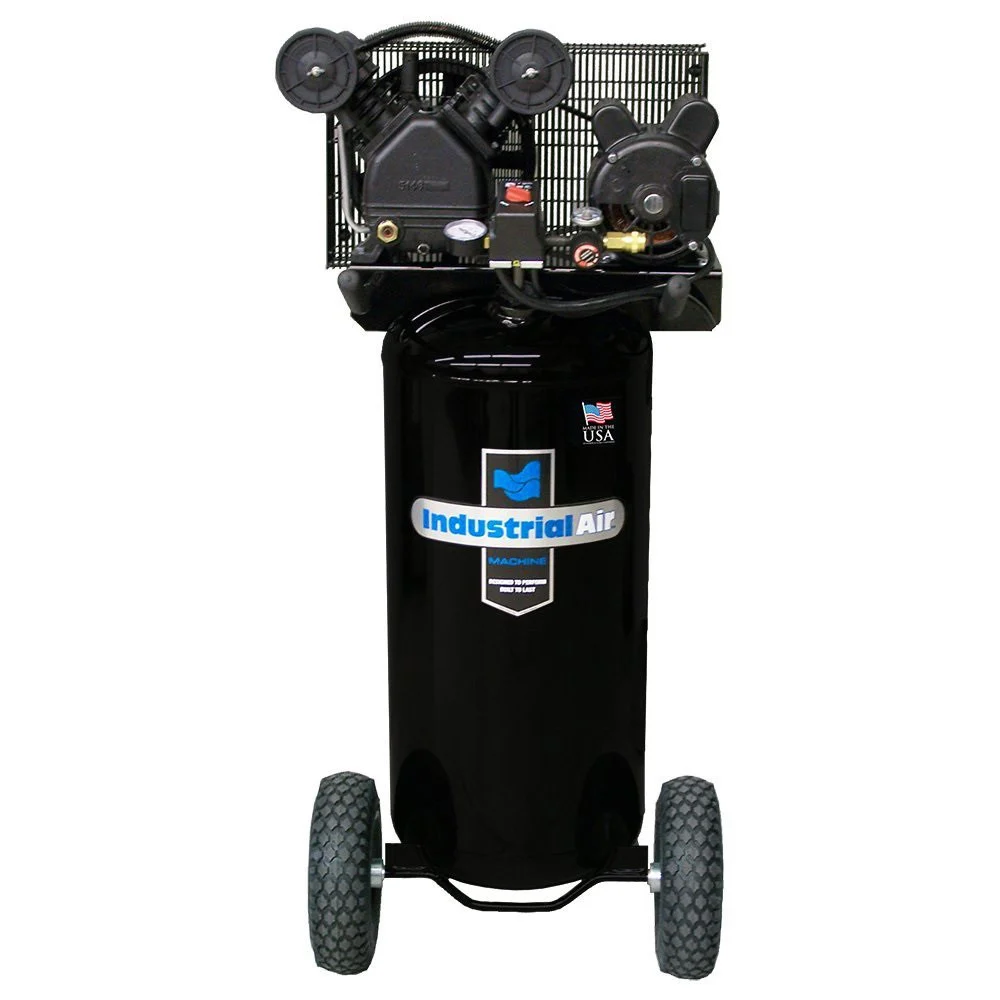

Industrial Air 1.6 HP 20 Gallon Oil-Lube Vertical Dolly Air Compressor – IL1682066.MN

Product Features & specs :

Industrial Air IL1682066.MN 1.6 HP 20 Gallon Oil-Lube Vertical Dolly Air Compressor

Details

The Industrial Air 20 gal compressor generates 5.3 CFM at 90 PSI from a 135 PSI maximum tank. The 1.6 HP, Dual-Voltage motor is wired for 120V applications but can be converted for 240V operation. The cast-iron tank is equipped with pneumatic wheels which allow for easier portability.

Features:

• Cast iron V-twin cylinder pump provides durable and reliable performance that drives many air tools

• Heavy duty induction motor for maximum performance and efficiency

• 20 gal vertical portable tank equipped with pneumatic tires for maximum portability

• Dual voltage motor is wired for standard 120V outlet, and may also be converted for 240V application

• Shipped with 100% full synthetic air compressor oil for optimum performance and long life

• Equipped with quick-set regulator, tank and tool pressure gauges, quick connect air outlet and on/off switch

What’s Included:

• 1.6 HP 20 Gallon Oil-Lube Wheeled Vertical Air Compressor – IL1682066.MN

Power Source

Corded

Lubrication System

Oil-Lube

Drive System

Belt Drive

Amperage

15

UL Safety

Yes

Power Type

Electric

Motor Type

Brushed

Tank Construction

Cast Iron

Tank Orientation

Vertical

Tank Capacity

20 gal

Operating Pressure (PSI)

135

Lubrication

Oil-Lube

Tank Style

Dolly

CSA Safety

Yes

Pump Type

Reciprocating

Phase

1

Horsepower

1.6

Air Consumption at 90 PSI (SCFM)

5.3

Voltage

120V/240V

Fitting Size

3/4 in

Air Consumption at 40 PSI (SCFM)

6.2

Running Horsepower

1.6

Noise Rating (dBA)

78

ETL Safety

No

Length

25 in.

Width

24.5 in.

Height

48.75 in.

Weight

159 lbs.

Warranty Term

2 Year
