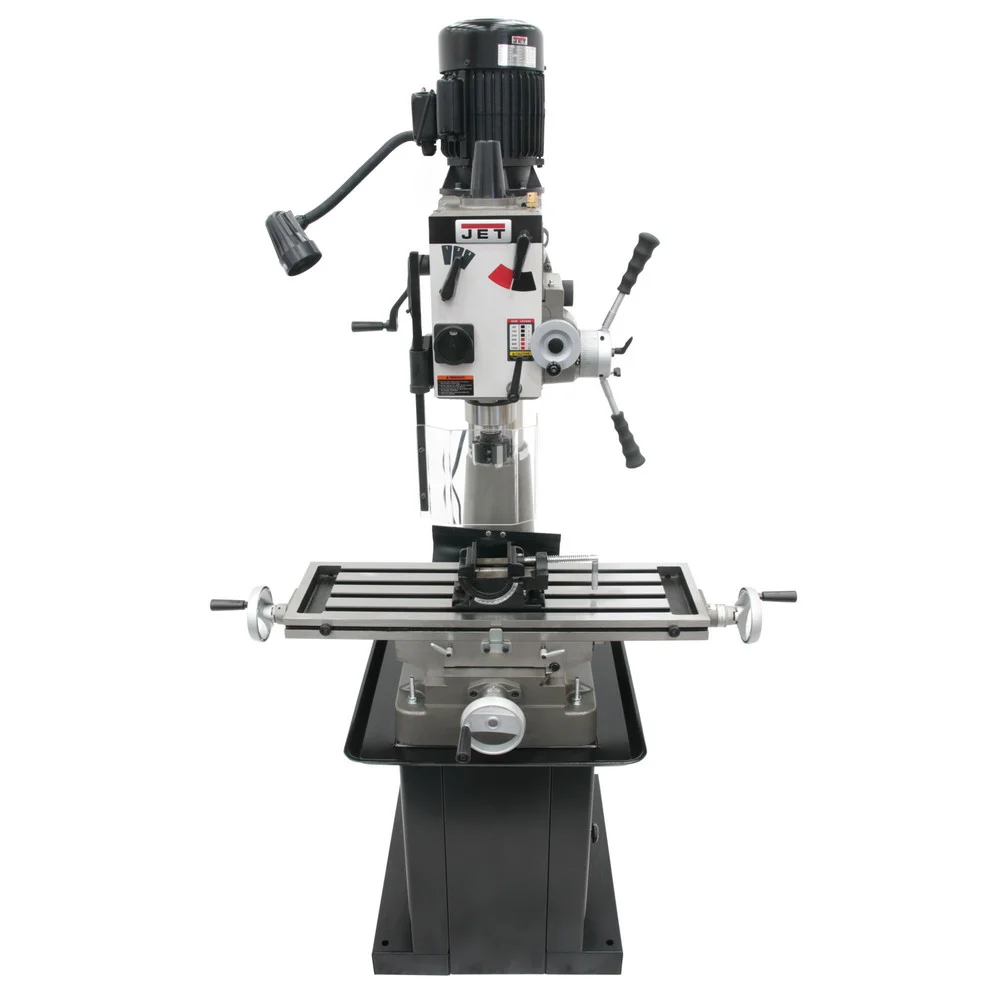

JET JT9-351146 Geared Head Mill/Drill with Power Downfeed and Newall DP500 2-Axis DRO

Product Features & specs :

JET JT9-351146 Geared Head Mill/Drill with Power Downfeed and Newall DP500 2-Axis DRO

Details

Engineered for precision drilling, the heavy-duty JMD-40GHPF Round Column Geared Head Mill Drill with power downfeed is loaded with intuitive features for maximum accuracy.

Features:

• Calibrated fine down feed built in

• CSA/CUS Certified

• Easy to read internal depth gauge

• Full power to the cutting tools through 6 speed geared head

• Heavy-duty design allows for a variety of precision drilling applications

• Mill Drill Stand, p/n 350045, shown in some images, is optional

• Milling table allows for movement

• Power Downfeed standard

• R8 spindle allows use of all mill tooling

• Rapid spindle speed changes through quick-select gear shift levers.

What’s Included:

• Geared Head Mill/Drill with Power Downfeed and Newall DP500 2-Axis DRO – 351146

Power Source

Corded

PreWired Voltage

230V

Amperage

20

UL Safety

No

Wifi compatibility

No

Spindle to Table Distance

15-3/4 in

Spindle Speeds

6

Bluetooth Compatibility

No

Longitudinal Table Travel (X-Axis)

20-1/2 in

Motor Type

Brushed

Quill Diameter

3 in

Head Movement

90 Degrees R/L

T-Slot Size

5/8 in

Spindle Speed Range

65 – 1550

CSA Safety

Yes

Table Size

8-1/4 in x 28-3/4 in

Spindle Taper

R-8

Motor Phase

1

Horsepower

1.5

Voltage

115V

No. of T-Slots

4

Spindle Travel

5 in

Cross Travel (Y-Axis)

8-1/4 in

ETL Safety

No

Length

29 in.

Width

36 in.

Height

50 in.

Weight

721 lbs.

Warranty Term

2 Year
