JET JWBS-20-3 230V 3 HP 1-Phase 20 in. Vertical Steel Frame Band Saw – JT9-714800

Product Features & specs :

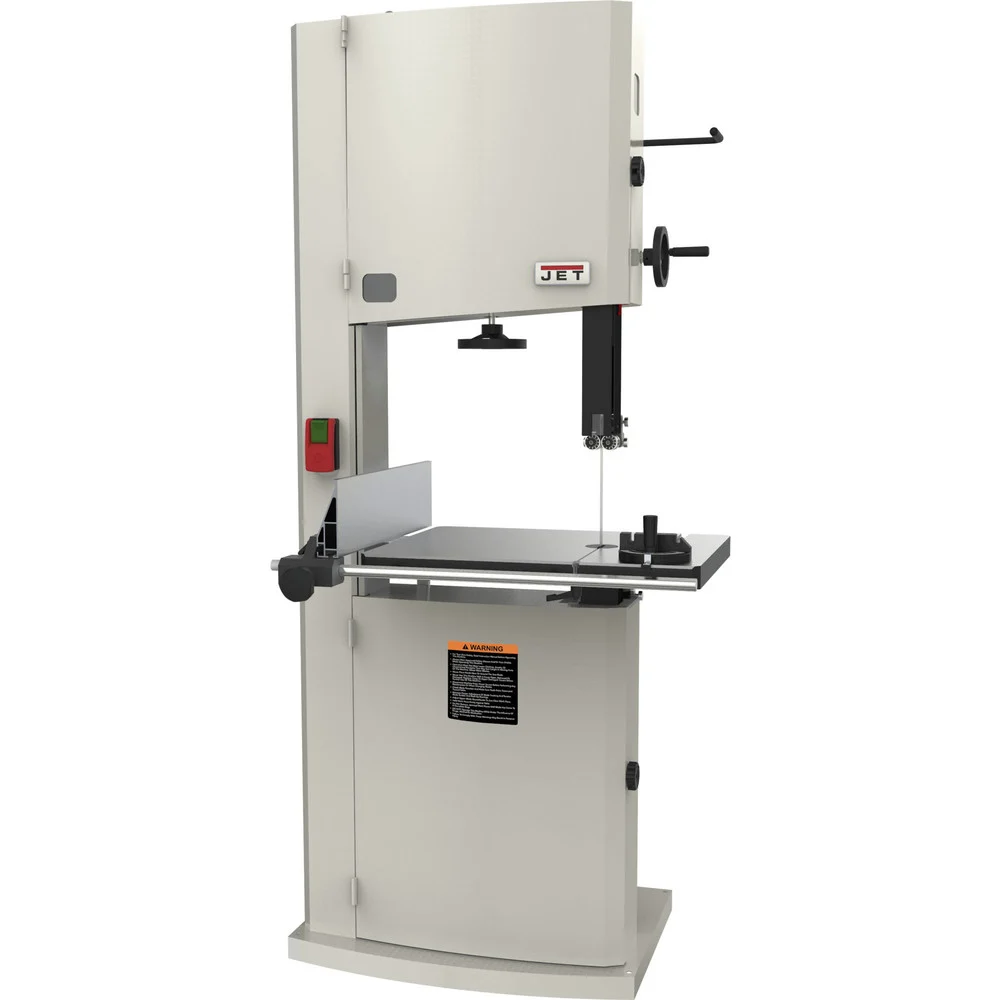

JET JWBS-20-3 230V 3 HP 1-Phase 20 in. Vertical Steel Frame Band Saw

Details

Designed to perform, the Jet JWBS-20-3 230V 3 HP 1-Phase 20 in. Vertical Steel Frame Band Saw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The Jet 20 in. Steel Frame Band Saw is engineered to build great projects through superior performance.

Features:

• 16 in. re-saw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels

• 27-1/4 in. x 20 in. precision ground cast iron table for added stability and work support

• Tool-less, independently adjustable, upper and lower ball bearing guides

• Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support

• Fence system features a micro-adjustable, dual-position side plate

• Easy-to-read blade tension scale can be viewed through upper door window

• Single knob adjustment simplifies the blade tracking process

• Blade tracking window provides clear view of blade during tracking

• Heavy-duty tensioning with quick release features three settings: full tension, partial tension and full release

• Cast-iron trunnion for maximum support and stability

• Slotted table allows for front blade removal

• Cast-iron hand wheels and ergonomically designed knobs make adjustments smooth and easy

• Round table insert features leveling screws for precise adjustment

• Conveniently located dual 4 in. dust collection ports catch dust and chips at the source

• Table tilts 5 degrees left and 45 degrees right to accommodate a wide variety of cuts

What’s Included:

• JWBS-20-3 230V 3 HP 1-Phase 20 in. Vertical Steel Frame Band Saw – 714800

Cutting Capacity (W x D)

20 in x 16 in

Power Source

Corded

Amperage

12

UL Safety

No

Table Tilt (Left)

5 Degrees

Wifi compatibility

No

Blade Width

0.13 in – 1.25 in

Bluetooth Compatibility

No

Blade Width (Max.)

1 in

Motor Type

Brushed

Table Tilt (Right)

45 Degrees

Blade Speed (SPM)

2530 / 4850

Blade Wheel Diameter

20-1/4 in

CSA Safety

Yes

Dust Port Size

4 in

Blade Length

158 in

Table Height

37 in

Motor Phase

1

Blade Width (Min.)

1/8 in

Horsepower

3

Voltage

230V

ETL Safety

No

Length

33 in.

Width

26.2 in.

Height

37 in.

Weight

588 lbs.

Warranty Term

5 Year
