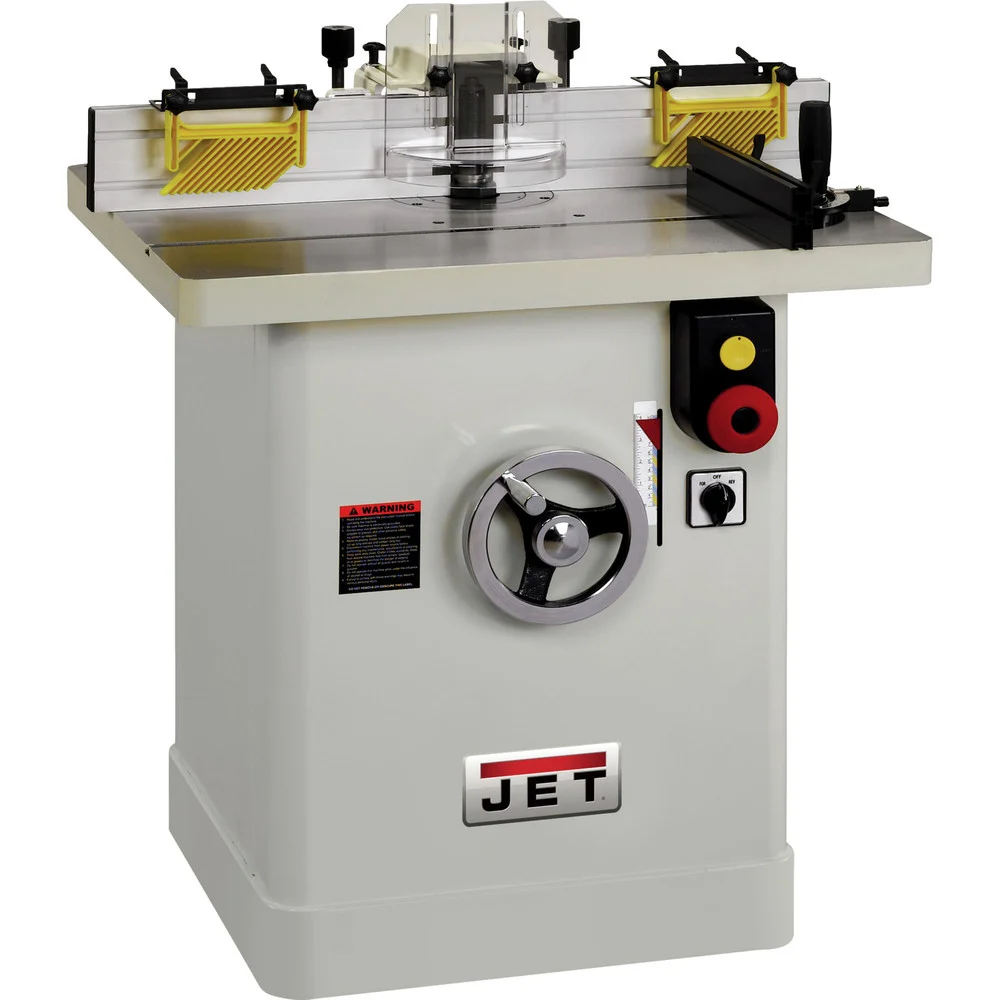

JET JWS-35X3-1 3 HP 1-Phase Industrial Shaper – JT9-708323

Product Features & specs :

JET JWS-35X3-1 3 HP 1-Phase Industrial Shaper

Details

This new heavy-duty JET, Shaper is available with a powerful 3HP, 1Ph motor with magnetic controls. The four-speed 4000, 6000, 8000, 10,000 RPM step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. It comes standard with independently adjustable left and right fences, and a micro-adjust control for precise positioning.

Features:

• Four-speeds 4000, 6000, 8000, 10,000 RPM let you select the best speed and torque for different cutter diameters

• Powerful 3HP, 1Ph, 5HP, 1Ph or 5HP, 3Ph motor with magnetic controls

• Large 26-3/4 ft. X 32-1/4′ precision ground cast iron table provides a durable work area, predrilled for power feeder

• Independently adjustable left and right fences, standard with a micro adjust control for precise positioning

• Poly-V-belt transfers maximum power to the spindle

• Starting Pins for irregular shaping

• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs

• Extra-large chrome hand wheel is conveniently located for fast, easy and accurate spindle height adjustments

• Reversible spindle speeds for diverse shaping jobs

• 4 in. Dust port built into fence for convenient hookup to any dust collection system

• Spindle lock for safe and easy cutter set-up

• Spindle height scale

What’s Included:

• 3 HP 1-Phase Industrial Shaper – 708323

Power Source

Corded

Fence Length

16 in

PreWired Voltage

230V

Amperage

14

UL Safety

No

Spindle Diameter

1-1/4 in

Opening Diameter (Insert)

2-9/16 in / 4-5/16 in

CSA Safety

No

Wifi compatibility

No

Fence Height

4-3/4 in

Opening Diameter (Table)

6-19/64 in

Dust Port Size

4 in

Table Dimensions

32-1/4 in x 26-3/4 in

Bluetooth Compatibility

No

Max. Spindle Speed (RPM)

10000

Motor Phase

1

Table Height

33-1/4 in

Horsepower

3

Voltage

230V

Motor Type

Brushed

Spindle Travel

4 in

Min. Spindle Speed (RPM)

4000

ETL Safety

No

Length

40 in.

Width

30 in.

Height

41 in.

Weight

550 lbs.

Warranty Term

5 Year
