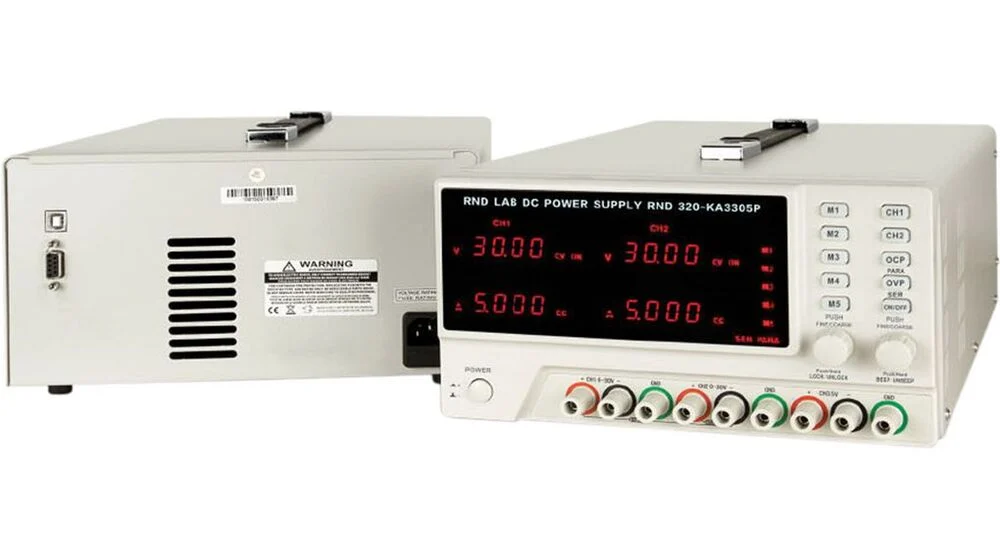

This 3-way programmable linear lab power supply can precisely control voltage and current with a precision of 10mV or 1mA. To turn the output of this power supply on and off, there is a separate switch. This way you don’t accidentally overload a circuit. The 5 memory slots allow users to save and quickly recall their preferred settings. Three channels are available, two of which can be adjusted between 0 and 30 Volts or 0 and 5 Amps. In addition, there is a fixed 5 volt channel suitable for powering most test circuits. It is possible to connect the adjustable channels in parallel or in series. Using the supplied software, the lab power supply can be programmed. It can be connected via USB or RS232.
Pros:
- 3 different outputs
- Memory slots
- High current
Cons:
- Voltage output max is lower than others
Specifications
Voltage type of supply voltage : AC
1st secondary output voltage (V) : 0 V to 30 V
2nd secondary output voltage (V) : 0 V to 30 V
3rd secondary output voltage (V) : 1 V to 5 V
Max. output current 1 (A) : 5
Max. output current 2 (A) : 5
Max. output current 3 (A) : 3
Secondary voltage adjustable : Yes
Rated voltage AC (V) : 230 V to 230 V
Rated voltage (AC 60 Hz) (V) : 230 V to 230 V
Electrical connection : Plug-in connection
Output voltage stabilized : Yes
Power output (W) : 315
Stabilized : Yes
Short-circuit-proof : Yes
Suitable for safety functions : No
SIL (IEC 61508) : None
Modular version : No
Direct mounting possible : No
Wall mounting possible : No
Rail mounting possible : No
Performance level (EN ISO 13849-1) : None
