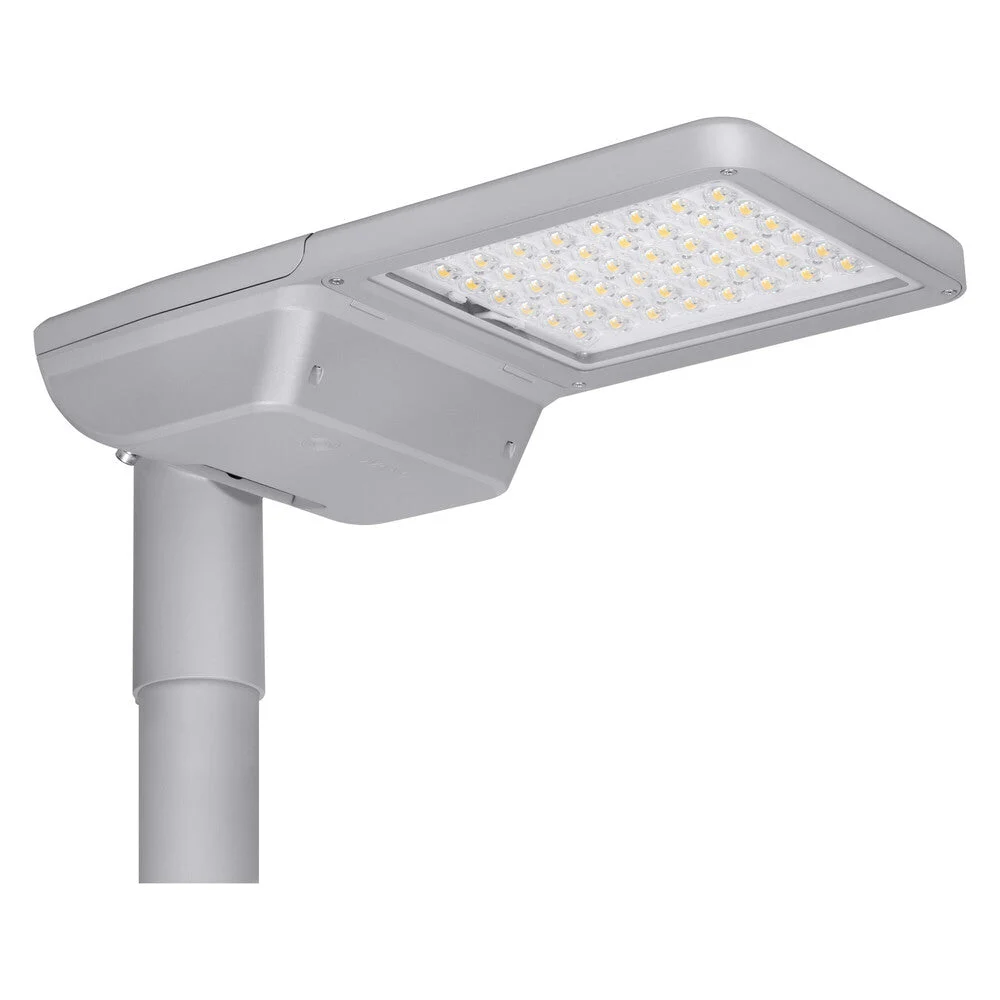

Light distribution for general road lighting. Product features: Light distributions are optimized for streets of similar width to the pole height. The product has a very long lifetime up to 100,000 hours at 25 Celsius. Spigot for 48-60 mm poles is included. Additional reduction for 42 mm and adapter for 76 mm poles are available separately. The adjustable spigot can be used for both side-entry and post-top installation. It also allows a +/- 15° tilt angle adjustment without the need to open the housing. The product has high luminous efficacy, up to 147 lm/W. It can operate at temperatures between -40 to 50 Celsius. The product offers high surge protection, up to 10 kV. Its protection class is II.
Product benefits include its durable design and highest quality component selection for long-lasting performance. It offers quick and easy wiring, due to tool-free housing opening and push button terminal. High light uniformity is another feature. It offers three light colors, perfectly suited to illuminate highly diverse surroundings. The product has no upper light output ratio (0%) when mounted at 0° tilt. It has an automatic mains disconnection feature when the housing is opened. The product comes with a 5-year guarantee.
The areas of application include:
- Outdoor use (IP66)
- M-, C- and P-class roads according to EN 13201
- Parking
- Public areas
- Industry
The spigot for 42 and 76 mm poles is available separately.
Specifications
Mounting method : Post top
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 0
Lamp holder : None
Material : Aluminum
Surface protection : Powder coating
Material cover : Glass transparent
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
Nominal current (mA) : 277 mA to 277 mA
LED nominal current at constant current (mA) : 277 mA to 277 mA
Type of control gear : Electronic ballast
With control gear : Yes
Exchangeable control gear : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Light distributor : Focal lens
Color consistency (McAdam ellipse) : SDCM5
Rated life time L70/B50 at 25 °C (h) : 100000
Rated life time L80/B10 at 25 °C (h) : 100000
Rated life time L90/B10 at 25 °C (h) : 100000
Degree of protection (IP) : IP66
Adjustable optics : No
Suitable for spigot size (mm) : 60 mm to 60 mm
Impact strength : IK08
Protection class : II
Luminaire with limited surface temperature, sign “D“ : No
Rated ambient temperature according to IEC62722-2-1 (°C) : -40 °C to 50 °C
Remote control : None
With radio control : No
Constant light output (CLO) : No
With light regulation program control : No
With connection cable : No
Suitable for lamp power (W) : 0 W to 11 W
Max. system power (W) : 58
Rated luminous flux according to IEC 62722-2-1 (lm) : 8500
Luminaire efficacy (lm/W) : 147
Colour of light : White
Colour temperature (K) : 4000 K to 4000 K
Color rendering index CRI : 70-79
Power factor : 0.9
Width (mm) : 250
Height/depth (mm) : 90
Length (mm) : 496
Type of wiring : Ending
Number of poles : 2
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Connection type : Push-in clamp
Compatible with Amazon Alexa : No
IFTTT support available : Yes
