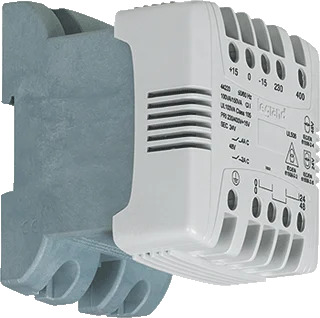

Legrand 1-Phase Transformer 115V | 44265

The safety transformer by Legrand can be used as both a safety transformer or an isolation transformer. The primary voltage is between 230 and 400V, while the secondary voltage is between 115 and230V. The (measuring the apparent power) apparent power is 250VA. The safety transformer comes with an electrostatic screen. It can be mounted on DIN rails of 7.5mm without mounting plates or 15mm with mounting plates. The transformer comes with two coupling strips. Conform to EC EN 61558-2.

Specifications

Primary voltage 1 (V) : 215 V to 215 V
Primary voltage 2 (V) : 230 V to 230 V
Primary voltage 3 (V) : 245 V to 245 V
Primary voltage 4 (V) : 385 V to 385 V
Primary voltage 5 (V) : 400 V to 400 V
Primary voltage 6 (V) : 415 V to 415 V
Secondary voltage 1 (V) : 115 V to 115 V
Secondary voltage 2 (V) : 230 V to 230 V
Rated apparent power (VA) : 250
Short-circuit-proof : No
Type of insulation material according to IEC 85 : B
Relative short circuit voltage (%) : 6.08
Degree of protection (IP) : IP2X
Built as energy saving transformer : No
Built as isolating transformer : Yes
Built as safety transformer : No
Ring core : No
Modular version : Yes
Suitable for mounting on PCB : No
