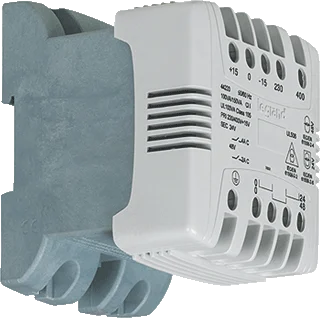

Legrand 1-Phase Transformer 215V | 44224

Legrand single-phase control transformer (wxdxh), 94x113x112mm; secondary voltage 1 12V; primary voltage 1 215V; primary voltage 2 2230V (measuring), apparent power 160VA, modular design for railmounting secondary voltage 2 24V. Designed as safety transformer with protection degree (IP2) IP2X.

Specifications

Primary voltage 1 (V) : 215 V to 215 V
Primary voltage 2 (V) : 230 V to 230 V
Primary voltage 3 (V) : 245 V to 245 V
Primary voltage 4 (V) : 385 V to 385 V
Primary voltage 5 (V) : 400 V to 400 V
Primary voltage 6 (V) : 415 V to 415 V
Secondary voltage 1 (V) : 12 V to 12 V
Secondary voltage 2 (V) : 24 V to 24 V
Rated apparent power (VA) : 160
Short-circuit-proof : No
Type of insulation material according to IEC 85 : B
Relative short circuit voltage (%) : 7.4
Degree of protection (IP) : IP2X
Built as energy saving transformer : No
Built as isolating transformer : Yes
Built as safety transformer : Yes
Ring core : No
Modular version : Yes
Suitable for mounting on PCB : No
