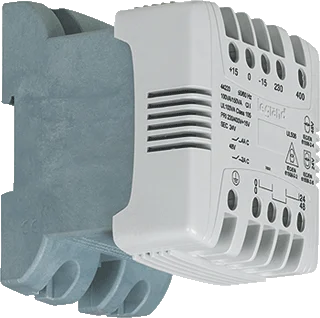

Legrand 1-Phase Transformer 215V | 44232

The safety transformer by Legrand can be used as both an isolation transformer and safety transformer. The primary voltage is between 230 and 400V, while the secondary voltage is 24-48V. The apparent power (measuring) is 63VA. The safety transformer comes with an electrostatic screen. It can be mounted on DIN rails of 7.5mm without mounting plates or 15mm with mounting plates. The transformer comes with two coupling strips. Conform to EC EN 61558-2-6.

Specifications

Primary voltage 1 (V) : 215 V to 215 V
Primary voltage 2 (V) : 230 V to 230 V
Primary voltage 3 (V) : 245 V to 245 V
Primary voltage 4 (V) : 385 V to 385 V
Primary voltage 5 (V) : 400 V to 400 V
Primary voltage 6 (V) : 415 V to 415 V
Secondary voltage 1 (V) : 24 V to 24 V
Secondary voltage 2 (V) : 48 V to 48 V
Rated apparent power (VA) : 63
Short-circuit-proof : No
Type of insulation material according to IEC 85 : B
Relative short circuit voltage (%) : 9.01
Degree of protection (IP) : IP2X
Built as energy saving transformer : No
Built as isolating transformer : Yes
Built as safety transformer : Yes
Ring core : No
Modular version : Yes
Suitable for mounting on PCB : No
