Description

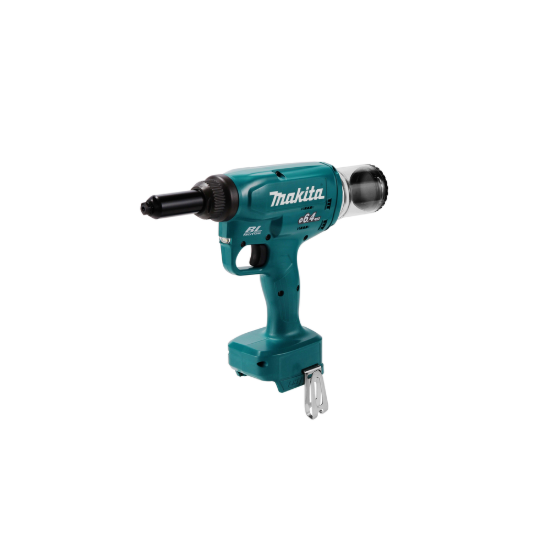

The XVR02T installs rivets up to 1/4 inch (6.4 mm) with a BL Brushless Motor delivering 20 kN of pulling force. It features a 30 mm stroke that sets most rivets in one stroke and is capable of pulling aluminum, steel, and stainless steel rivets.
- BL Brushless Motor delivers 20 kN of pulling force
- Installs rivets up to 1/4 inch (6.4 mm)
- 30 mm stroke sets most rivets in one stroke
- Capable of pulling aluminum, steel, and stainless steel rivets
- Compact and ergonomic design at only 12-3/4 inch long, weighs 5.3 lbs with battery
Features
- BL Brushless Motor delivers 20 kN of pulling force
- Installs rivets up to 1/4 inch (6.4 mm)
- 30 mm stroke sets most rivets in one stroke
- Capable of pulling aluminum, steel, and stainless steel rivets
- Compact and ergonomic design at only 12-3/4 inch long, weighs 5.3 lbs with battery
Includes
- Rivet tool
- (2) 18V LXT Lithium-Ion 5.0Ah batteries (BL1850B)
- Rapid Optimum Charger (DC18RC)
- Molybdenum Disulfide Grease (191D57-7)
- 4.8 mm (3/16 inch) Nosepiece and Jaw Pusher with Tube
- 6.0 mm (7/32 inch) Nosepiece and Jaw Pusher
- Tool case
Specifications
| Pulling Force | 20 kN | Stroke Length | 30 mm |
| LED light | Yes | Height (with battery) | 11-1/4 inch |
| Net Weight (with battery) | 5.3 lbs | Brushless Motor | Yes |
| Length (with battery) | 12-3/4 inch | Width (with battery) | 3-1/8 inch |
| Battery | 18V LXT Lithium-Ion | Voltage | 18V |
| Form Factor (LXT) | 18V LXT | Motor Type | Brushless |
