Description

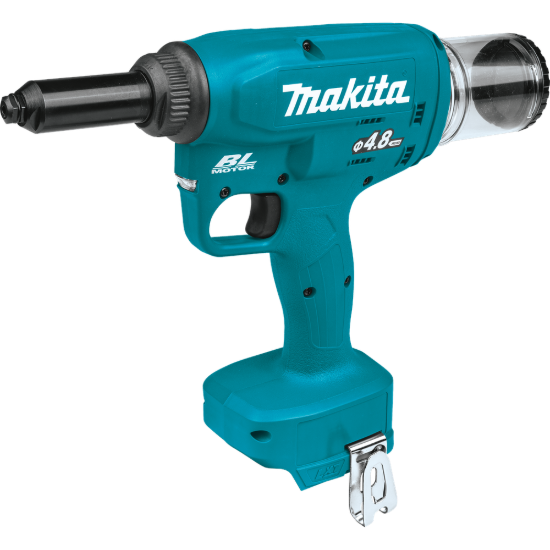

The XVR01Z is a brushless cordless rivet tool that installs rivets up to 3/16 inch (4.8mm) with 10 kN pulling force and 25mm stroke. It is part of Makita’s 18V LXT system and is tool only (battery and charger not included).
- BL Brushless Motor delivers 10 kN pulling force
- Installs rivets up to 3/16 inch (4.8mm)
- 25mm stroke sets most rivets in one stroke
- Capable of pulling aluminum, steel, and stainless steel rivets
- Compact and ergonomic design at only 12-3/8 inch long
Features
- BL Brushless Motor delivers 10 kN of pulling force
- Installs rivets up to 3/16 inch (4.8mm)
- 25mm stroke sets most rivets in one stroke
- Capable of pulling aluminum, steel, and stainless steel rivets
- Compact and ergonomic design at only 12-3/8 inch long
Includes
- (1) 4.8 mm (3/16 inch) Jaw Set (199731-7)
- (1) Molybdenum Disulfide Grease (191D57-7)
- (1) 2.4 mm (3/32 inch) Nosepiece and Jaw Pusher with Tube (1911U6-3)
- (1) 3.2 mm (1/8 inch) Nosepiece and Jaw Pusher with Tube (1911U4-7)
- (1) 4.0 mm (5/32 inch) Nosepiece and Jaw Pusher with Tube (1911U1-3)
Specifications
| Pulling Force | 10 kN | Stroke Length | 25 mm |
| LED light | Yes | Height (with battery) | 11-1/4 inch |
| Net Weight (with battery) | 4.9 lbs. | Battery | 18V LXT Lithium-Ion |
| Voltage | 18V | Brushless Motor | Yes |
| Length (with battery) | 12-3/8 inch | Width (with battery) | 3-1/8 inch |
| Form Factor (LXT) | 18V LXT | Motor Type | Brushless |
| UPC Code | 088381-876469 |
