Description

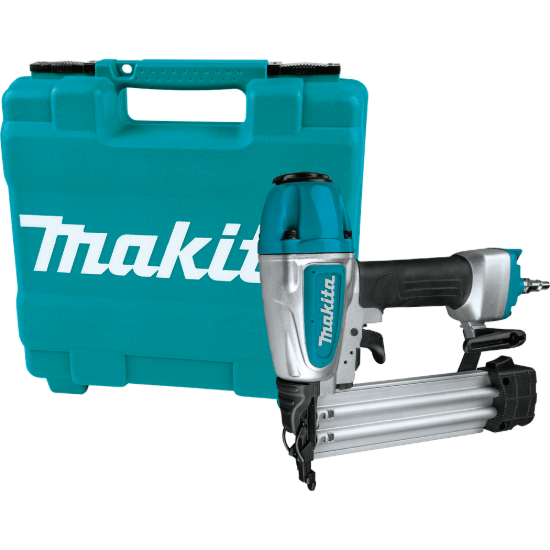

The Makita AF506 is a pneumatic 18-gauge brad nailer that drives nails from 5/8 inch to 2 inch. It features a narrow nose design for confined areas and a tool-less depth adjustment dial.
- Drives 18-gauge brad nails from 5/8 inch to 2 inch
- Narrow nose design for confined areas
- Tool-less depth adjustment dial
- Built-in air duster
- Weighs only 2.9 lbs
Features
- Powerful motor drives a range of 18 gauge brad nails from 5/8 inch to 2 inch into hard or soft wood applications
- Aluminum body, magazine and cylinder for strength and durability; weighs only 2.9 lbs.
- Narrow nose design allows easy nailing access in confined areas
- Built-in air duster provides convenient air flow to clear work surface
- Easy to use ‘tool-less’ depth adjustment dial for a wide variety of finish applications
Includes
- Pneumatic nailer oil
- No-mar tips (2)
- Safety glasses
- Air fitting
- Tool case
Specifications
| Power Type | Pneumatic | Fastening category | Brad Nail |
| Size | 5/8 inch to 2 inch (18 ga.) | Maximum Magazine Capacity | 100 |
| Operating Air Pressure (PSI) | 70 – 120 | Operating Air Pressure (Bar) | 4.9 – 8.3 |
| Air Consumption (SCFM) | 2 | Dimensions (LxWxH) | 9-7/8 inch x 2-3/4 inch x 10-1/8 inch |
| Inlet Size | 1/4 inch NPT | Tool Hook Included | Yes |
| Air Fitting Included | Yes | Industrial Style Fitting Included | 1/4 inch NPT x 1/4 inch |
| Net Weight | 2.9 lbs. | Packaged Depth (in) | 2.76 inch |
| Packaged Height (in) | 10.08 inch | Packaged Width (in) | 9.84 inch |
| Shipping Weight | 7.5 lbs. | UPC Code | 088381-870733 |
