Description

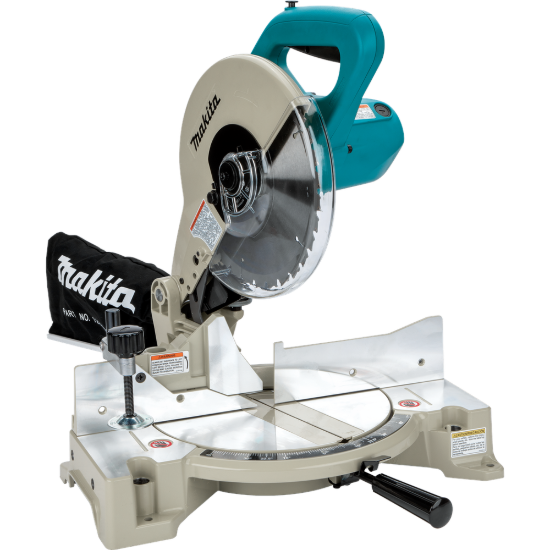

The LS1040 is a 10-inch compound miter saw with a powerful 15 AMP direct drive motor and 4,600 RPM for improved performance. It offers precise miter and bevel cuts with dual post compound pivot arm and weighs only 27.3 lbs for portability.
- 15 AMP direct drive motor with 4,600 RPM
- Miter cuts 0-45 left and 0-52 right with 9 positive stops
- Bevel cuts up to 45 to the left
- Weighs only 27.3 lbs for easy portability
- Precision-machined aluminum base
Features
- Powerful 15 AMP direct drive motor for improved performance; 4,600 RPM
- Dual post compound pivoting arm
- Miter cuts 0-45 left and 0-52 right
- Positive miter stops at 9 settings: 15, 22.5, 30, 45, right or left and 0 (90 cuts)
- Bevel cuts up to 45 to the left
Includes
- 10 inch 40T Micro-Polished Miter Saw Blade (A-93669)
- Dust Bag (122852-0)
- Triangular Rule (762001-3)
- Vertical Vise (122536-0)
- Socket Wrench (782232-8)
Specifications
| Blade Diameter | 10 inch | Arbor | 5/8 inch |
| Max Cutting Capacity (miter 90) | 2-3/4 inch x 5-1/8 inch | Max Cutting Capacity (miter 45 LR) | 1-3/8 inch x 3-5/8 inch |
| No Load Speed | 4,600 RPM | Dimensions (LxWxH) | 20-7/8 inch x 18-3/4 inch x 21 inch |
| AMPS | 15 | Net Weight | 27.3 lbs |
| Power Type | Corded | UPC Code | 088381-020107 |
