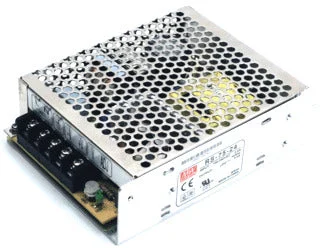

Mean Well RS DC Power Supply 88/264V | RS-75-24

Mean Well RS DC Power Supply 88/264V | RS-75-24

Specifications

Voltage type of supply voltage : AC/DC
Max. output current 1 (A) : 3.2
Secondary voltage adjustable : No
Rated voltage AC (V) : 88 V to 264 V
Rated voltage (AC 60 Hz) (V) : 88 V to 264 V
Rated voltage DC (V) : 24 V to 24 V
Output voltage stabilized : Yes
Power consumption (VA) : 75
Power output (W) : 75
Stabilized : Yes
Short-circuit-proof : No
Degree of protection (IP) : IP20
Suitable for safety functions : No
SIL (IEC 61508) : None
Refurbished : No
Modular version : No
Direct mounting possible : No
Wall mounting possible : No
Rail mounting possible : No
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 38
Built-in width (mm) : 98
