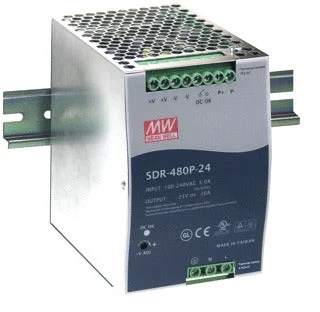

Mean Well SDR DC Power Supply 24V | SDR-480P-24

Mean Well SDR DC Power Supply 24V | SDR-480P-24

Specifications

Voltage type of supply voltage : AC/DC
1st secondary output voltage at DC (V) : 24 V to 24 V
Max. output current 1 (A) : 20
Secondary voltage adjustable : Yes
Nominal value output voltage 1 (V) : 24
Rated voltage AC (V) : 90 V to 264 V
Rated voltage (AC 60 Hz) (V) : 90 V to 264 V
Rated voltage DC (V) : 127 V to 370 V
Electrical connection : Screw connection
Output voltage stabilized : No
Power output (W) : 480
Stabilized : No
Short-circuit-proof : No
Suitable for safety functions : No
SIL (IEC 61508) : None
Refurbished : No
Modular version : Yes
Wall mounting possible : No
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 125.2
