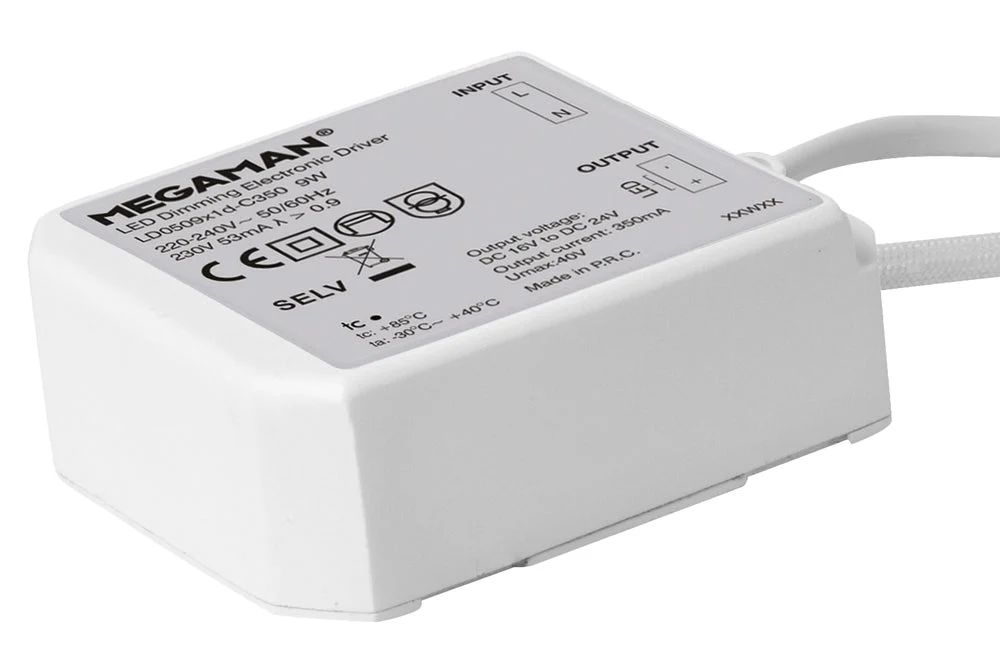

Megaman Dim to warm LED driver – MM07928

Megaman Dim to warm led driver dynamic, output voltage 16 – 24V, output power 9W, output current 350mA, dimmable phase cut, dimmable phase cut, suitable for constant current, housing plastic housing, degree of protection (IP) IP20.

Specifications

Model : Dynamic
Suitable for outdoor use : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DSI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : Yes
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
Constant light output (CLO) : No
No dim function : No
Housing : Plastic housing
Suitable for constant current : Yes
Suitable for constant voltage : No
Output voltage (V) : 16 V to 24 V
Output current (mA) : 350 mA to 350 mA
Suitable for DC-voltage (primary side) : No
Output power (W) : 9 W to 9 W
Degree of protection (IP) : IP20
Protection class : II
Length (mm) : 62
Width (mm) : 46
Height (mm) : 20
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
