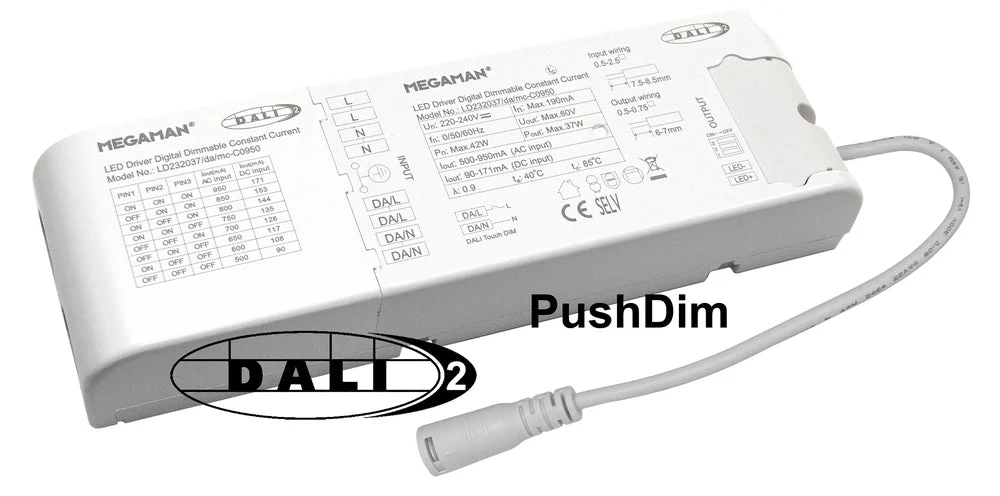

Megaman LED driver – MM10941

Megaman led driver dynamic, output voltage 30 – 39V, output power 42W, output current 500 – 950mA, dimmable DALI, dimmable with push-button, suitable for constant current, housing plastic housing, degree of protection (IP) IP20.

Specifications

Model : Dynamic
Suitable for outdoor use : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : Yes
Dimming DSI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : Yes
Constant light output (CLO) : No
No dim function : No
Housing : Plastic housing
Suitable for constant current : Yes
Suitable for constant voltage : No
Output voltage (V) : 30 V to 39 V
Output current (mA) : 500 mA to 950 mA
Suitable for DC-voltage (primary side) : No
Output power (W) : 37 W to 37 W
Degree of protection (IP) : IP20
Protection class : I
Length (mm) : 200
Width (mm) : 64
Height (mm) : 32
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
