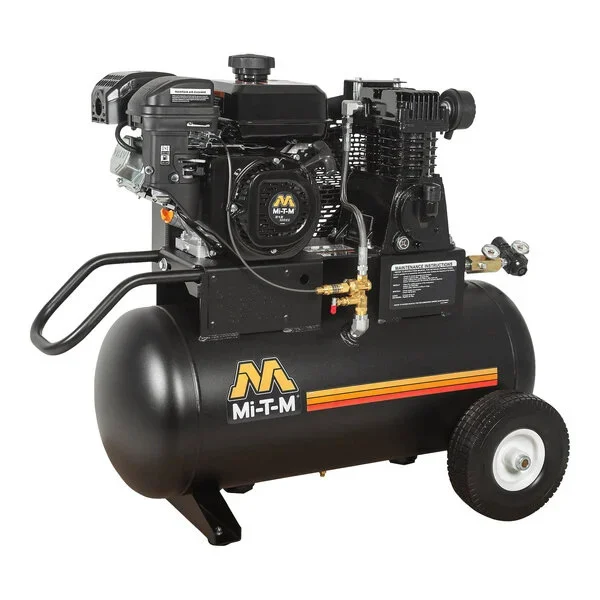

Mi‑T‑M AM1‑PM07‑20M – 7 HP Gas Powered Air Compressor
Overview
The Mi‑T‑M AM1‑PM07‑20M is a 20‑gallon, single‑stage, portable, gas‑powered horizontal air compressor designed for contractors and industrial users who need reliable compressed air in remote or outdoor job sites. Built with durability and mobility in mind, it combines a powerful 7 HP engine with a rugged steel tank.
Key Features
-
Engine: 7 HP, 212 cc Mi‑T‑M OHV gas‑powered engine with cable throttle idle control
-
Pump: Cast iron compressor pump with splash lubrication for long service life
-
Tank: 20‑gallon powder‑coated alloy carbon steel horizontal receiver tank
-
Airflow: 13.9 CFM @ 90 PSI, maximum pressure up to 200 PSI
-
Mobility: Built‑in handle and two 10″ flat‑free tires for easy transport
-
Durability: Stainless steel braided discharge hose, large canister intake filter, and two‑piece powder‑coated belt guard
-
Maintenance: Oil level sight indicator, manual drain valves, pilot valve unloader, and regulator with dual gauges (tank and outlet pressure)
-
Construction: Heavy‑duty 3/16″ base plate minimizes vibration; 12″ flywheel for smooth operation
-
Finish: Powder‑coated for corrosion resistance
-
Made in USA: Manufactured by Mi‑T‑M Corporation
Specifications
| Attribute | Value |
|---|---|
| Tank Capacity | 20 gallons |
| Horsepower | 7 HP |
| Air Pressure Range | 90 – 200 PSI |
| Airflow Rating | 13.9 CFM @ 90 PSI |
| Engine Size | 212 cc |
| Dimensions | 37″ L × 23.5″ W × 33″ H |
| Weight | 268 lbs |
| Wheels | 2 flat‑free tires |
| Installation Type | Portable |
| Material | Carbon steel |
| Stages | Single stage |
Ideal Applications
-
Construction sites requiring portable compressed air
-
Industrial maintenance and repair jobs
-
Remote locations without electrical power
-
Contractors needing high PSI and sustained airflow for pneumatic tools
