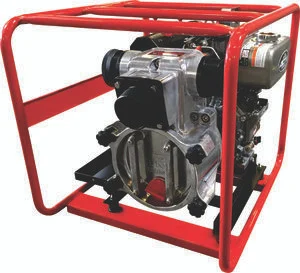

Dependable industrial 3″ centrifugal trash pump that is the professional’s choice for the toughest dewatering applications. Capable of moving 1.5″ spherical solids, this pump provides the signature Multiquip die-cast aluminum pump-end casings and high quality internal components provide the fastest priming times and trusted operational life. The pump is powered by an electric start, KUBOTA OC60-E4 diesel engine that provides EPA/CARB compliance design. This pump is the ideal choice for dewatering operations such as: excavations, flood waters, sewage by-pass, water transfer, and barge cleaning.
- Die-cast aluminum casings to promote fast priming times.
- Rugged, EPA/CARB Certified 6.0HP KUBOTA diesel engine.
- Electric start for operating convenience.
- Engineered for 325 GPM flow rate.
- Maximum Head – 85′.
- Pumps water with solid content as large as 1.5″ in diameter.
- Dual 3″ discharge ports for operational and application flexibility.
- Silicon/carbon mechanical seal for durability.
- Large clean-out chamber design for efficient.
- Tubular Steel frame for transportation and pump protection.
- #45 Ductile iron impeller and volute for abrasion resistance/long life.
- Shock mounted pump design to minimize operating harmonics.
| Suction x Discharge | 3 x 3 in 76 x 76 mm |
|
| Max. Water Capacity | 325 gpm | 1450 lpm |
| Max. Lift | 25 ft | 7.6 m |
| Max. Head | 85 ft | 27 m |
| Max. Pressure | 37.7 psi | 268 kPA |
| Max. Solid Intake | 1.5 in | 37 mm |
| Fuel Tank Capacity | .95 Gal | 3.5 L |
| Optional Wheel Kit | UWKA |
| Overall Length | 27.0 in | 686 mm |
| Overall Width | 23.5 in | 597 mm |
| Overall Height | 24.0 in | 610 mm |
| Operating Weight | 176 lb | 80 kg |
