MURR Emparro Universal Power Supply 24V 20A | 85442

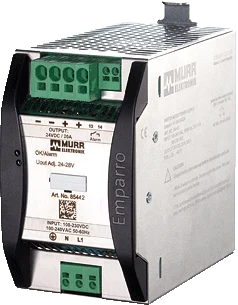

Murr Emparro 1 Phase Universal Power Supply Unit, (wxh: 100x160mm), 1st Secondary Voltage at DC 24V. Type supply voltage DC, max.

Specifications

Voltage type of supply voltage : AC/DC
1st secondary output voltage at DC (V) : 24 V to 24 V
2nd secondary output voltage at DC (V) : 24 V to 24 V
3rd secondary output voltage at DC (V) : 24 V to 24 V
Max. output current 1 (A) : 20
Max. output current 2 (A) : 24
Max. output current 3 (A) : 30
Secondary voltage adjustable : Yes
Rated voltage AC (V) : 85 V to 265 V
Rated voltage (AC 60 Hz) (V) : 85 V to 265 V
Rated voltage DC (V) : 90 V to 250 V
Electrical connection : Spring clamp connection
Output voltage stabilized : Yes
Power consumption (VA) : 507.3
Power output (W) : 480
Stabilized : Yes
Short-circuit-proof : Yes
Degree of protection (IP) : IP20
Suitable for safety functions : Yes
SIL (IEC 61508) : None
Refurbished : No
Modular version : Yes
Direct mounting possible : Yes
Wall mounting possible : No
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 145
