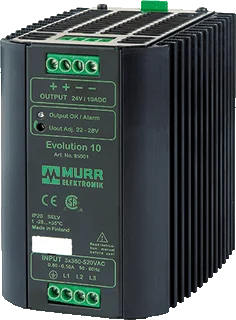

Murr Evolution 3 Phase Direct Current Power Supply Unit, (wxdxh), 93x114x132mm. 1st Secondary Voltage 22-28V, voltage type AC/DC, nominal voltage AC 50 Hz 324-572V, max.
Specifications
Voltage type of supply voltage : AC/DC
1st secondary output voltage at DC (V) : 22 V to 28 V
2nd secondary output voltage at DC (V) : 22 V to 28 V
Max. output current 1 (A) : 11
Max. output current 2 (A) : 15
Max. output current 3 (A) : 31
Secondary voltage adjustable : Yes
Nominal value output voltage 1 (V) : 24
Nominal value output current 1 (A) : 10
Rated voltage AC (V) : 324 V to 572 V
Rated voltage (AC 60 Hz) (V) : 324 V to 572 V
Rated voltage DC (V) : 480 V to 745 V
Electrical connection : Screw connection
Output voltage stabilized : Yes
Power consumption (VA) : 268
Power output (W) : 240
Stabilized : Yes
Short-circuit-proof : Yes
Degree of protection (IP) : IP20
Suitable for safety functions : Yes
SIL (IEC 61508) : None
Refurbished : No
Modular version : Yes
Direct mounting possible : Yes
Wall mounting possible : No
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 150
Width in number of modular spacings : 1
