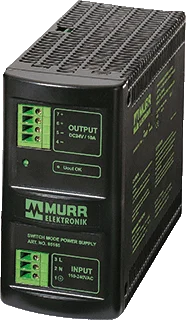

Murr MCSB 1 phase universal power supply unit. (wxdxh). 68x165x165mm. 1st Secondary Voltage at DC 24V. Voltage type supply voltage AC. 1st Secondary Voltage at AC 265V. Maximum Output Current 1 10A. Nominal supply voltage at AC 50Hz 100- 265V. 2nd Secondary voltage DC 22.5V.
Specifications
Voltage type of supply voltage : AC
1st secondary output voltage at AC (V) : 265 V to 265 V
1st secondary output voltage at DC (V) : 24 V to 24 V
2nd secondary output voltage at DC (V) : 22.5 V to 22.5 V
3rd secondary output voltage at DC (V) : 28 V to 28 V
Max. output current 1 (A) : 10
Max. output current 2 (A) : 12
Secondary voltage adjustable : Yes
Rated voltage AC (V) : 90 V to 265 V
Rated voltage (AC 60 Hz) (V) : 90 V to 265 V
Electrical connection : Screw connection
Output voltage stabilized : Yes
Power consumption (VA) : 275.9
Power output (W) : 240
Stabilized : Yes
Short-circuit-proof : Yes
Degree of protection (IP) : IP20
Suitable for safety functions : Yes
SIL (IEC 61508) : None
Refurbished : No
Modular version : Yes
Direct mounting possible : Yes
Wall mounting possible : No
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 150
