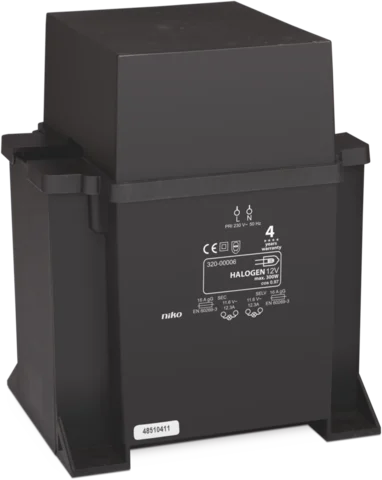

This wound transformer from Niko has an output of 300W and is suitable for connecting low-voltage lamps (12 V LED). These lamps can then be dimmed with phase-cut and universal dimmers. The transformer has two screw terminals on the primary side and four on the secondary side for connecting the mechanism. Matching mounting feet are included. Transformers from Niko are available in several variants.
Specifications
Type of transformer : Iron core transformer
Safety transformer : No
Output voltage (V) : 11.6 V to 11.6 V
Power (W) : 300 W to 300 W
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : Yes
Dimming programmable : No
Dimming with push-button : Yes
Connection type primary side : Screw connection
Connection type secondary side : Screw connection
Surface-mounted : Yes
Built-in : No
Material : Plastic
Color : Black
Short-circuit protected : No
Overload protection : No
Overtemperature protection : No
Number of output positions (pairs) : 2
Degree of protection (IP) : IP20
