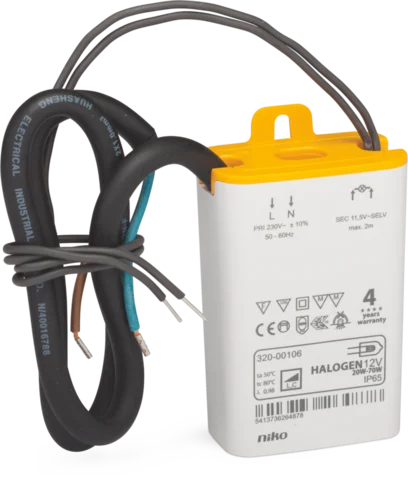

This electronic transformer has a capacity of 70W and is universally dimmable.
Suitable for the connection of low-voltage loads of 12V, this transformer boasts an IP68 protection degree, making it dust-free and splashproof.
Hence, it is an ideal choice for installation in damp rooms like bathrooms or kitchens.
For a swift and accurate connection, you can attach the rubber cable on the primary side to a Niko mini-connection box.
The silicon wire on the secondary side can be directly connected to a spotlight, with the cables being secured with resin.
Given its compact size, this transformer is perfect for installation in small spaces. Additionally, it can be used for flush mounting in furniture.
The transformer comes with integrated thermal protection and safeguards against short-circuit, overload, and overheating.
Specifications
Type of transformer : Electronic transformer
Safety transformer : No
Output voltage (V) : 11.6 V to 11.6 V
Power (W) : 20 W to 70 W
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : No
Dimming programmable : No
Dimming with push-button : Yes
Connection type primary side : Unpreassembled connection cable
Connection type secondary side : Unpreassembled connection cable
Surface-mounted : No
Built-in : Yes
Material : Plastic
Color : White
Short-circuit protected : Yes
Overload protection : Yes
Overtemperature protection : Yes
Number of output positions (pairs) : 1
Degree of protection (IP) : Other
