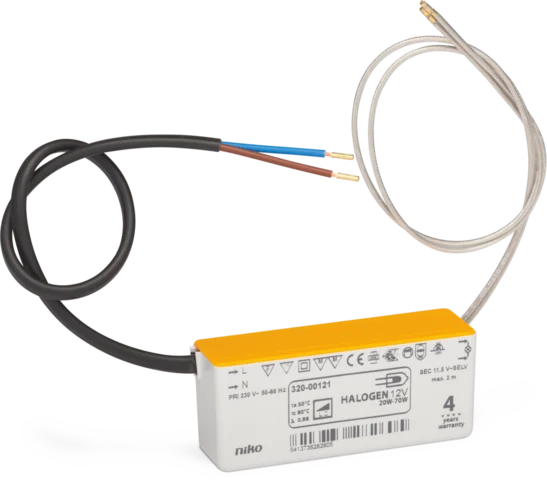

This compact, electronic transformer has a capacity of 70W and is universally dimmable. It is appropriate for the connection of low-voltage loads (12 V).
For a quick and accurate connection, you can connect the cable on the primary side to a Niko mini-connection box. The silicon wire on the secondary side can be directly connected to a spotlight. Both wires exit the transformer on the side, facilitating easy installation.
This transformer is exceptionally compact, making it suitable for connections in small spaces (hole diameter, 38mm). It can also be flush-mounted in furniture.
It comes with built-in short-circuit, overload, and overheating protection. The transformer has an IP20 protection degree.
Specifications
Type of transformer : Electronic transformer
Safety transformer : No
Output voltage (V) : 11.6 V to 11.6 V
Power (W) : 20 W to 70 W
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : No
Dimming programmable : No
Dimming with push-button : Yes
Connection type primary side : Unpreassembled connection cable
Connection type secondary side : Unpreassembled connection cable
Surface-mounted : No
Built-in : Yes
Material : Plastic
Color : White
Short-circuit protected : Yes
Overload protection : Yes
Overtemperature protection : Yes
Number of output positions (pairs) : 1
Degree of protection (IP) : IP20
