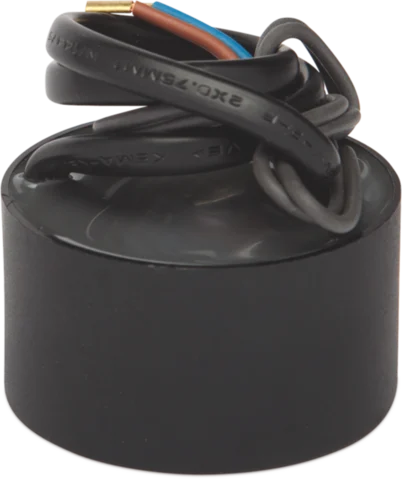

This round embedded electronic transformer has a power output of 70W and is universally dimmable. It is suitable for connecting low-voltage loads (12V). For quick and correct connection, you connect the wire to the primary side to a mini junction box from Niko. On the secondary side, there is a silicone wire that you can directly connect a spot to. The wires are secured with resin. The transformer is very compact and thanks to its round shape easy to hide at spots. This transformer is also suitable for installation in furniture. It is equipped with a built-in thermal fuse and built-in protection against short circuit, overload and overheating.
Specifications
Type of transformer : Electronic transformer
Safety transformer : No
Output voltage (V) : 11.5 V to 11.5 V
Power (W) : 70 W to 70 W
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : No
Dimming programmable : No
Dimming with push-button : Yes
Connection type primary side : Unpreassembled connection cable
Connection type secondary side : Unpreassembled connection cable
Surface-mounted : No
Built-in : Yes
Material : Plastic
Color : Black
Short-circuit protected : Yes
Overload protection : Yes
Overtemperature protection : Yes
With secondary automatic circuit breaker : No
Degree of protection (IP) : IP20
