Niko HALOGEN TRANSFO Transformer Low-Voltage Lighting System – 320-00134

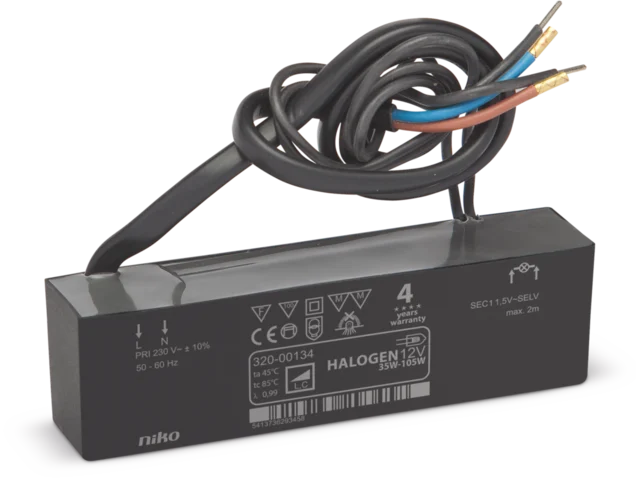

This flat, cast resin, electronic transformer has a capacity of 105W and is universally dimmable. It is suitable for connecting low-voltage loads of 12V. For a fast and accurate connection, you should connect the cable on the primary side to a Niko mini-connection box. The silicon wire on the secondary side can be directly connected to a spotlight. The cables are secured with resin.

This transformer is quite compact and, thanks to its shape, it is highly suitable for installation in tight spaces. Moreover, this transformer is suitable for flush mounting in furniture. It is equipped with integrated thermal protection and protection against short-circuits, overloads, and overheating.

Specifications

Type of transformer : Electronic transformer
Safety transformer : No
Output voltage (V) : 11.5 V to 11.5 V
Power (W) : 105 W to 105 W
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : No
Dimming programmable : No
Dimming with push-button : Yes
Connection type primary side : Unpreassembled connection cable
Connection type secondary side : Unpreassembled connection cable
Surface-mounted : No
Built-in : Yes
Material : Plastic
Color : Black
Short-circuit protected : Yes
Overload protection : Yes
Overtemperature protection : Yes
With secondary automatic circuit breaker : No
Degree of protection (IP) : IP20
