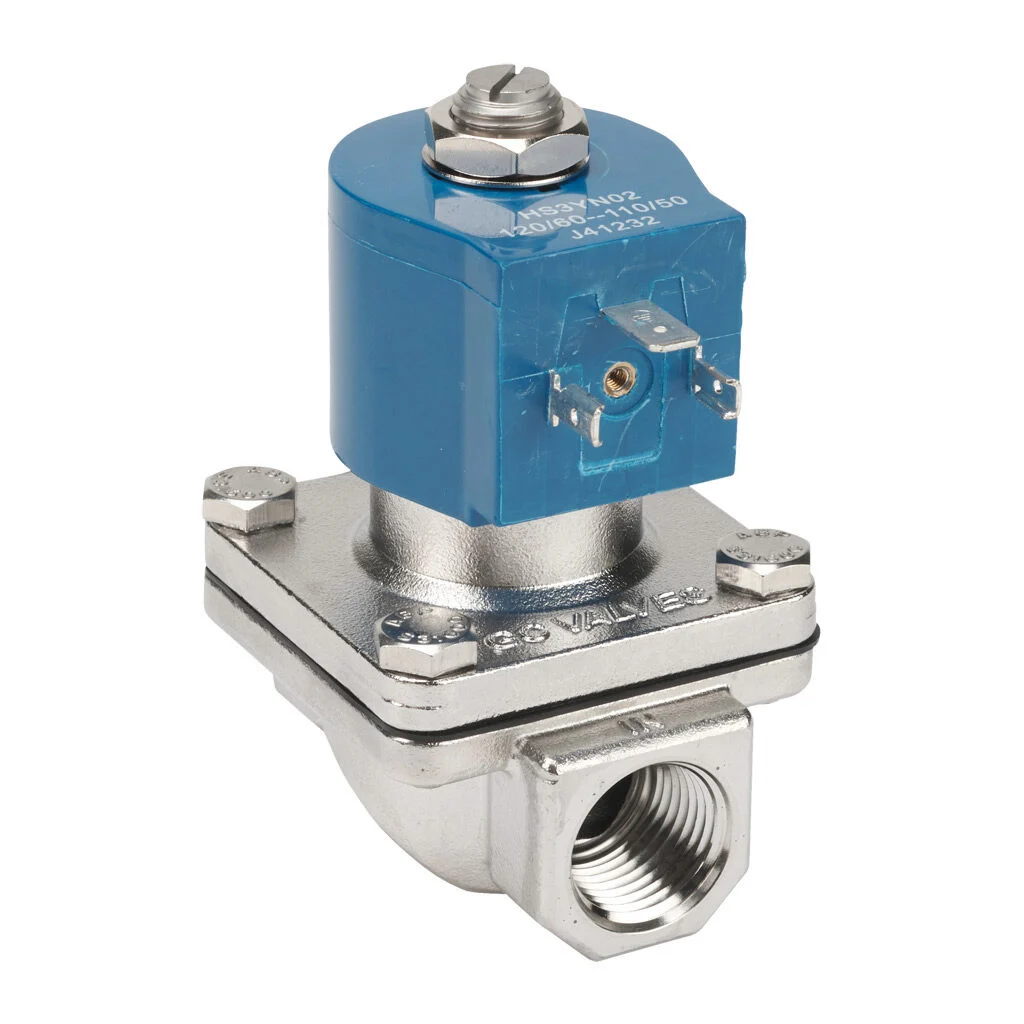

GC Valves potable water solenoid valve, 2-port (2-way), 2-position, N.C., 316 stainless steel body, EPDM rubber seal(s), 1/2in female NPT inlet(s), 1/2in female NPT outlet(s), Cv=4.3, 120/110 VAC operating voltage, 8W, NSF/ANSI/CAN 61.
Product Attribute Table
Working Fluid : Potable water
Valve Type : Solenoid process
Port Quantity : 2-port (2-way)
Number Of Positions : 2
Valve Configuration : N.C.
Action : Single solenoid spring return
Body Material : 316 stainless steel
Seal Material : EPDM rubber
Inlet Port : 1/2in female NPT
Outlet Port : 1/2in female NPT
Flow Coefficient : 4.3
Minimum Operating Pressure : 4 psi
Maximum Operating Pressure : 150 psi
Working Fluid Temperature : 32 to 176 deg F
Operating Voltage : 120/110 VAC
Power Rating : 8W
Electrical Connection : 18mm DIN style wiring plug
Potable Water Certifications : NSF/ANSI/CAN 61
