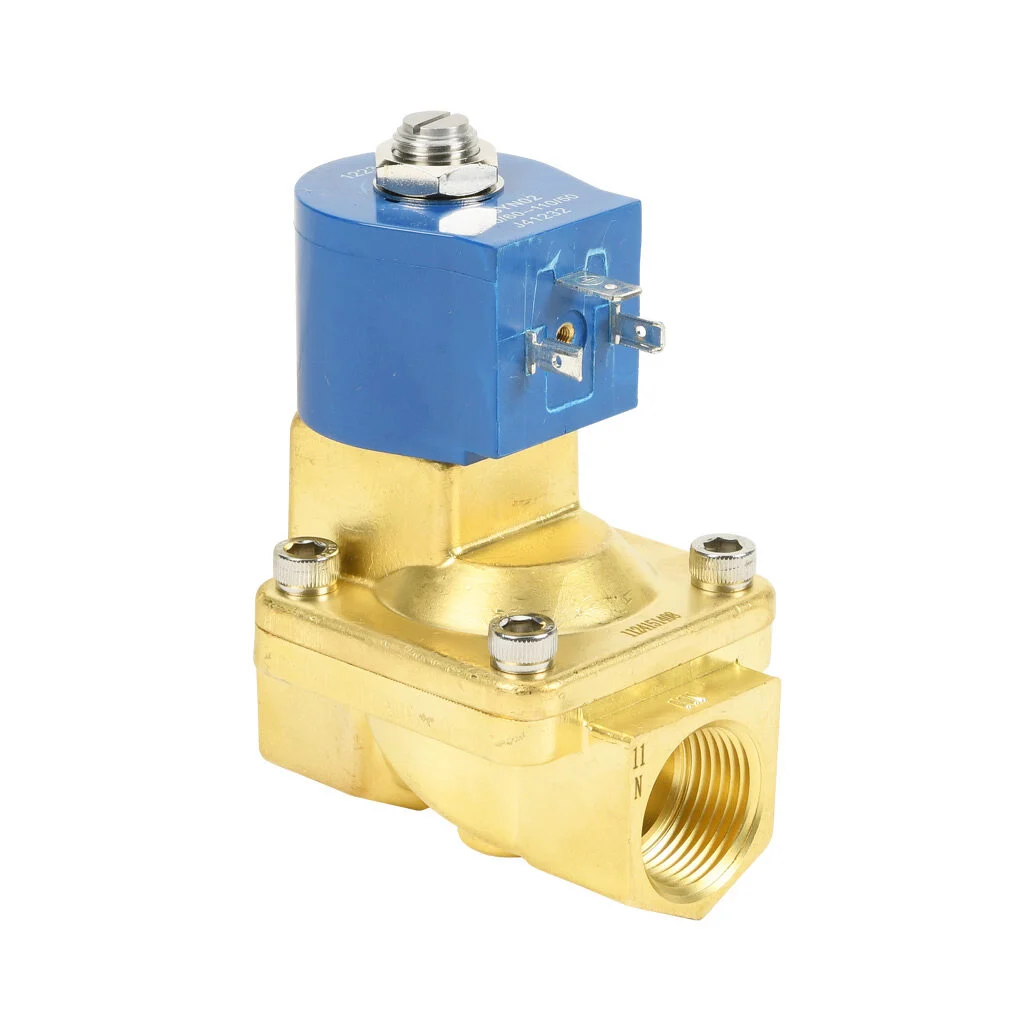

GC Valves potable water solenoid valve, 2-port (2-way), 2-position, N.C., lead-free brass body, EPDM rubber seal(s), 3/4in female NPT inlet(s), 3/4in female NPT outlet(s), Cv=6.7, 120 VAC operating voltage, 8W, NSF/ANSI 61.
Product Attribute Table
Working Fluid : Potable water
Valve Type : Solenoid process
NEMA Rating : 4
Port Quantity : 2-port (2-way)
Number Of Positions : 2
Valve Configuration : N.C.
Action : Piloted diaphragm
Body Material : Lead-free brass
Seal Material : EPDM rubber
Inlet Port : 3/4in female NPT
Outlet Port : 3/4in female NPT
Flow Coefficient : 6.7
Minimum Operating Pressure : 8 psi
Maximum Operating Pressure : 150 psi
Working Fluid Temperature : 180 deg F maximum
Operating Voltage : 120 VAC
Power Rating : 8W
Electrical Connection : 18mm DIN style wiring plug
Potable Water Certifications : NSF/ANSI 61
