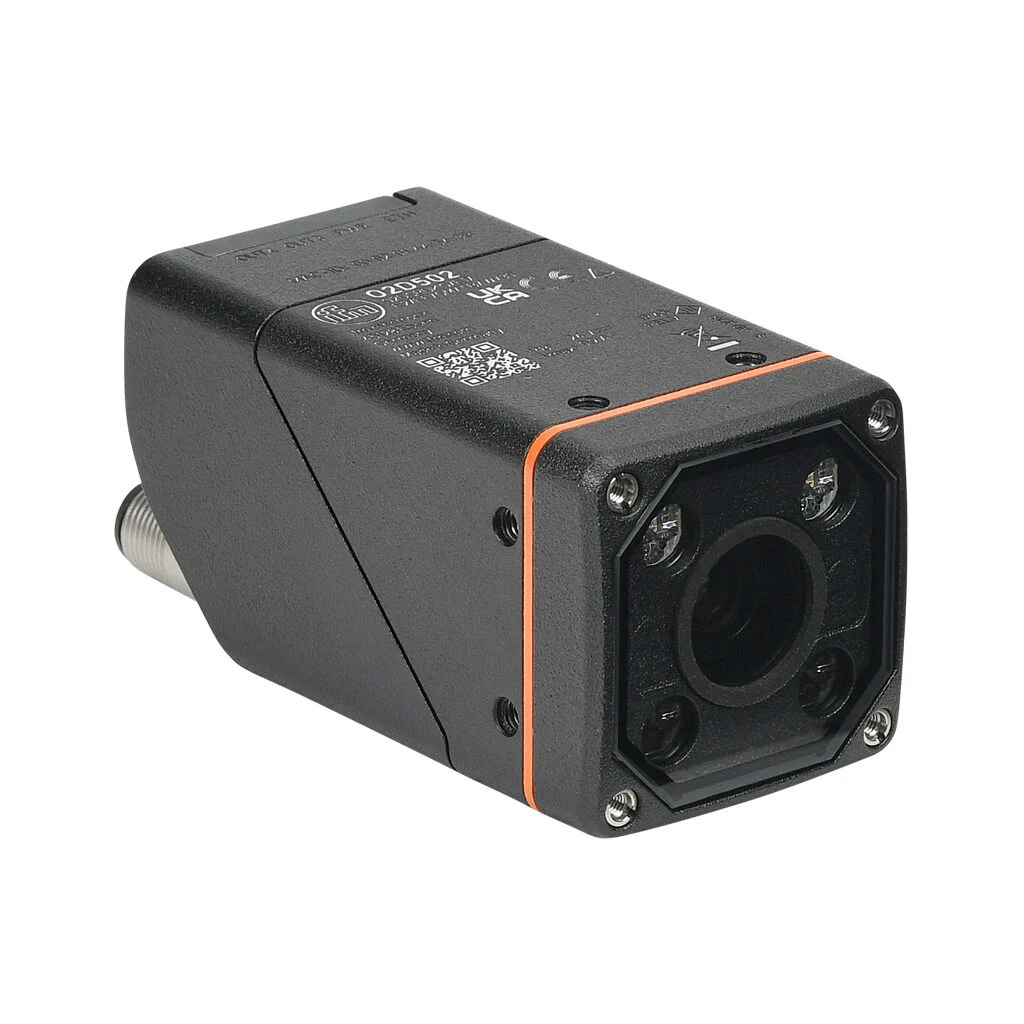

ifm efector O2D series 2D vision camera, 35-2500mm operating distance, wide angle lens, 1280 x 960 resolution, RGBW light emission, TCP/IP and EtherNet/IP, IP65.
Product Attribute Table
Series : O2D
Operating Distance : 35-2500mm
Lens Mount : Fixed
Lens Type : Wide angle
Focus Type : Automatic
Inspection Tools : Localization, detection and counting
View Area 1 : 25 x 19mm @ 35mm
View Area 2 : 1504 x 1128mm @ 2500mm
Response Time : 40fps
Resolution : 1280 x 960
Light Emission : RGBW
Input : NPN or PNP
Output : NPN or PNP
IP Rating : IP65
Housing Material : Die-cast zinc
Housing Size : 45 x 45 x 86mm body
Lens Material : Gorilla Glass
Operating Voltage : 18-30 VDC
Operating Temperature : -10 to 50 deg C
Connection : 8-pin M12 quick-disconnect and (1) 4-pin M12 D-coded
Port Protocol(s) : TCP/IP and EtherNet/IP
Additional Information : Purchase cable separately
