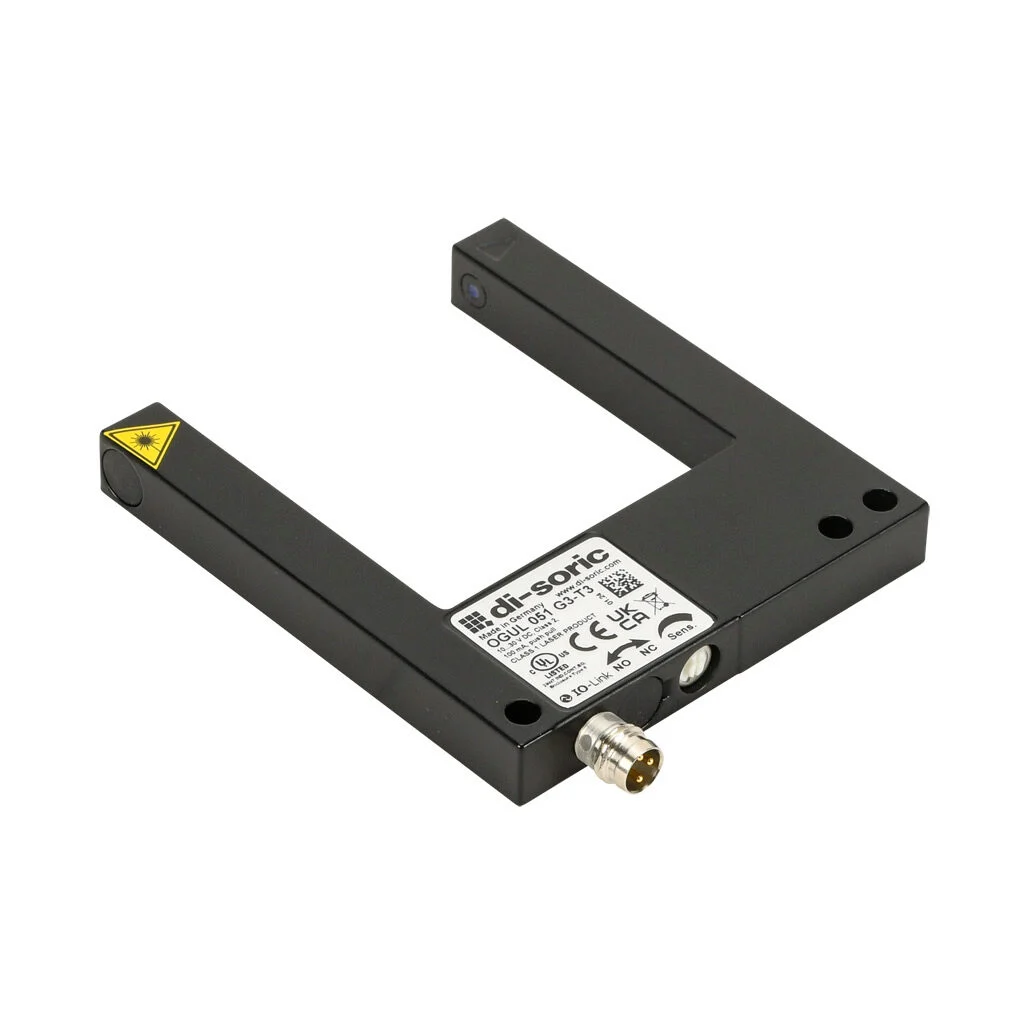

di-soric photoelectric sensor, U-frame, fork sensor, Class 1 red laser, 0-30mm sensing distance, selectable light-on/dark-on, push-pull NPN or PNP, 10-30 VDC operating voltage, 50 x 60 x 10mm body, die-cast zinc, 3-wire, 3-pin M8 quick-disconnect.
Product Attribute Table
Shape : U-frame
IP Rating : IP67
Application : Laser, standard duty and IO-Link
Housing Size : 50 x 60 x 10mm body
Housing Material : Die-cast zinc
Sensing Method : Fork sensor
Operating Voltage : 10-30 VDC
Switching Output : Push-pull NPN or PNP
Sensing Distance : 0-30mm
Operation Mode : Selectable light-on/dark-on
Switching Frequency : 10 kHz
Light Emission : Class 1 red laser
IO-Link Compatible : Yes
User Interface : Potentiometer and IO-Link
Connection : 3-pin M8 quick-disconnect
Number of Wires : 3
Communication Port and Connection Type(s) : 3-pin M8 (IO-Link) port(s)
Port Protocol(s) : IO-Link Class A Device
Port Speed(s) : IO-Link COM2
IO-Link Version : IO-Link v1.1
Standard I/O Mode Supported : Yes
Additional Information : Purchase cable separately
