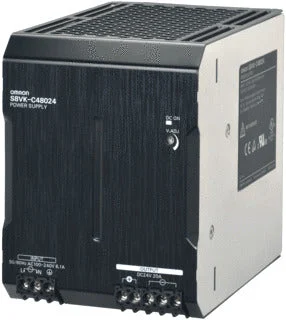

60w to480w s8vk–c series. The s8vk–c series of power supplies is a small space-saving single-phase power supply that meets all safety and input standards worldwide. This power supply is excellent and reliable. It’s also very cost-effective. The pwer supply has a compact design that is easy to install and can withstand harsh environments. It also withstands suns for long periods of time in stable conditions. This vesatile series can be attached to a DIN rail, saving you time and effort. Part number s8vk-c48024.
Specifications
Voltage type of supply voltage : AC/DC
1st secondary output voltage at DC (V) : 21.6 V to 27.6 V
Max. output current 1 (A) : 20
Secondary voltage adjustable : No
Nominal value output voltage 1 (V) : 24
Nominal value output current 1 (A) : 20
Rated voltage AC (V) : 100 V to 240 V
Rated voltage (AC 60 Hz) (V) : 100 V to 240 V
Rated voltage DC (V) : 90 V to 350 V
Electrical connection : Screw connection
Output voltage stabilized : No
Power consumption (VA) : 552
Power output (W) : 480
Stabilized : No
Short-circuit-proof : No
Degree of protection (IP) : IP20
Suitable for safety functions : No
SIL (IEC 61508) : None
Refurbished : No
Modular version : Yes
Direct mounting possible : No
Wall mounting possible : No
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 135
Built-in width (mm) : 95
Degree of protection (NEMA) : Other
Width in number of modular spacings : 5.3
