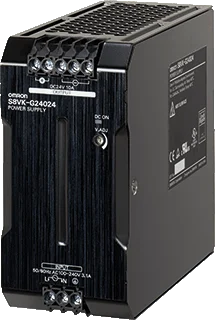

Omron POWER SUPPLIES – S8VK DC power supply unit, (wxdxh), 60x140x125mm. 1st Secondary voltage 21.6V – 27.6V. Voltage type supply voltage AC/DC. Nominal supply voltage at AC 50Hz 100 – 240V.
Specifications
Voltage type of supply voltage : AC/DC
1st secondary output voltage at DC (V) : 21.6 V to 27.6 V
Max. output current 1 (A) : 10
Secondary voltage adjustable : No
Nominal value output voltage 1 (V) : 24
Nominal value output current 1 (A) : 10
Rated voltage AC (V) : 100 V to 240 V
Rated voltage (AC 60 Hz) (V) : 100 V to 240 V
Rated voltage DC (V) : 90 V to 350 V
Electrical connection : Screw connection
Output voltage stabilized : No
Power consumption (VA) : 299
Power output (W) : 240
Stabilized : No
Short-circuit-proof : No
Degree of protection (IP) : IP20
Suitable for safety functions : Yes
SIL (IEC 61508) : None
Modular version : Yes
Direct mounting possible : No
Wall mounting possible : Yes
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 135
Built-in width (mm) : 60
Degree of protection (NEMA) : Other
Width in number of modular spacings : 1
