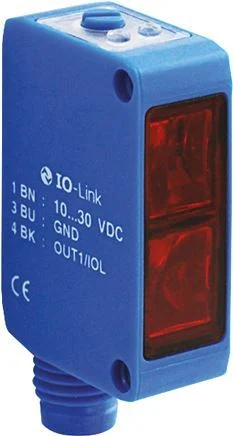

One-way Light Barrier Transmitter 0-30000 mm M8 3-pin

One-way light barriers consist of a light source and a receiver. The sensor’s “barrier” is formed by the light beam between the sender and receiver. In order to detect the object, the light beam must pass through the sender and receiver, and be intercepted by the outlet. The function of the detector remains unaffected by a particular object’s color or shape since it relies on the interception of the light beam.

Specifications

Operating distance (mm) : 0 mm to 30000 mm
Signal output : PNP
Electrical connection : Connector M8 (3-pin)
Material : ABS
Max. switching distance (mm) : 25000
Max. output current (mA) : 100
Sensor feature : One-way light barrier – transmitter
With reflector : No
Rated control supply voltage Us at DC (V) : 10 V to 30 V
Degree of protection (IP) : IP67
Material of optical surface : PMMA
Min. reflector distance (mm) : 0
Ambient temperature (°C) : -20 °C to 65 °C
Height of sensor (mm) : 37
Length of sensor (mm) : 20
Width sensor (mm) : 10
