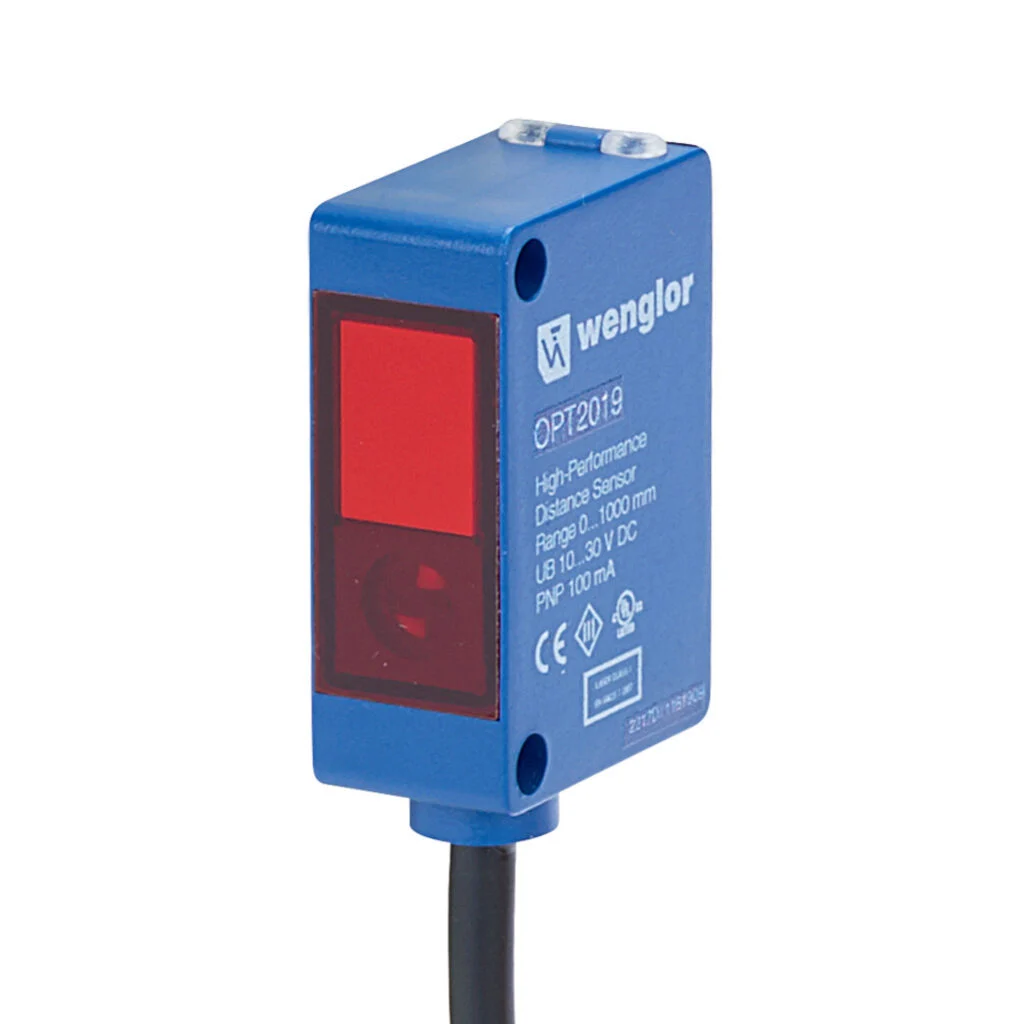

Wenglor photoelectric sensor, rectangular, background suppression, Class 1 red laser, 0-1m sensing distance, complementary light-on/dark-on, PNP, potentiometer, 32 x 22 x 12mm body, polycarbonate, 6.5ft/2m cable length, pigtail.
Product Attribute Table
Shape : Rectangular
IP Rating : IP67
Application : Laser and standard duty
Housing Size : 32 x 22 x 12mm body
Housing Material : Polycarbonate
Sensing Method : Background suppression
Sensing Technology : Time of Flight technology
Operating Voltage : 10-30 VDC
Switching Output : PNP
Sensing Distance : 0-1m
Operation Mode : Complementary light-on/dark-on
Switching Frequency : 1 kHz
Light Emission : Class 1 red laser
IO-Link Compatible : No
User Interface : Potentiometer
Cable Length : 6.5ft/2m
Connection : Pigtail
Conductor Size : 26 AWG
