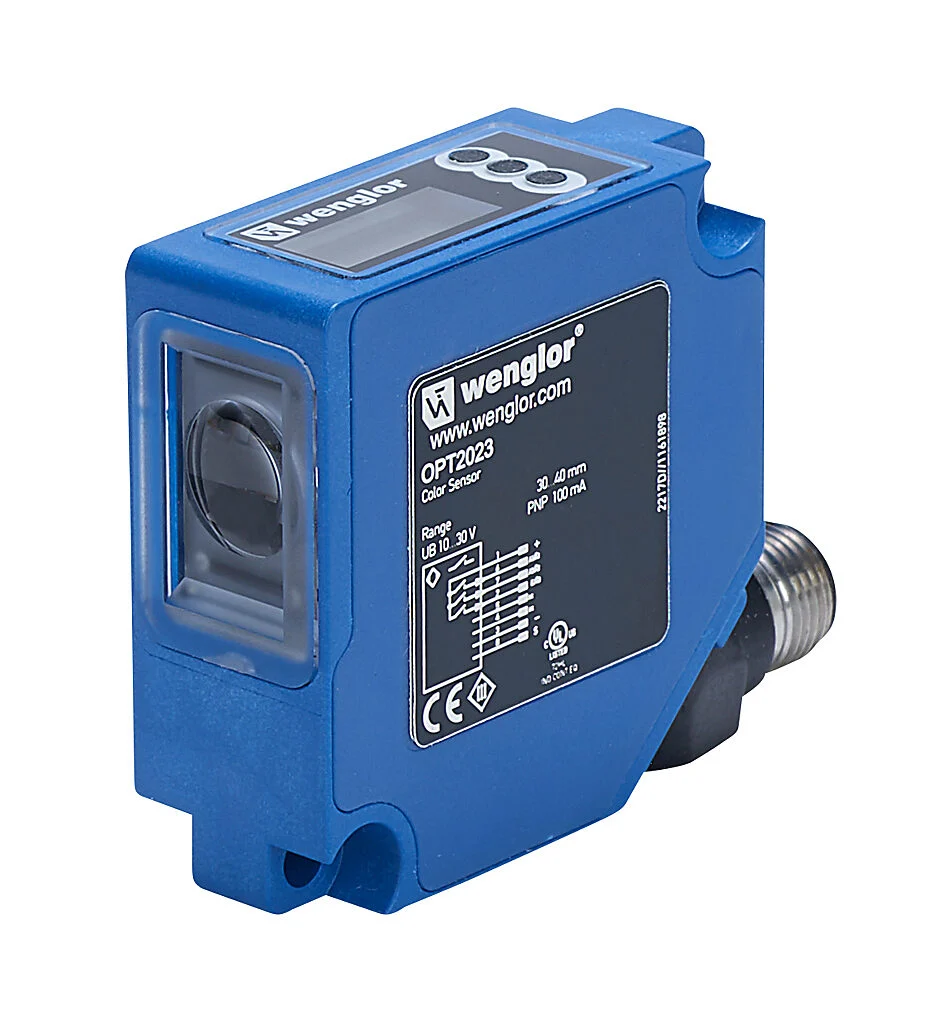

Wenglor photoelectric sensor, square, diffuse, white, 30-40mm sensing distance, selectable light-on/dark-on, NPN/PNP, 1.8 kHz switching frequency, 50 x 50 x 20mm body, plastic, 8-pin M12 quick-disconnect.
Product Attribute Table
Shape : Square
IP Rating : IP68
Application : Color and print mark and standard duty
Housing Size : 50 x 50 x 20mm body
Housing Material : Plastic
Sensing Method : Diffuse
Sensor Type : Color
Operating Voltage : 10-30 VDC
Switching Output : NPN/PNP
Sensing Distance : 30-40mm
Operation Mode : Selectable light-on/dark-on
Switching Frequency : 1.8 kHz
Light Emission : White
IO-Link Compatible : No
User Interface : Pushbutton
Connection : 8-pin M12 quick-disconnect
Standard I/O Mode Supported : No
Additional Information : Purchase cable separately
