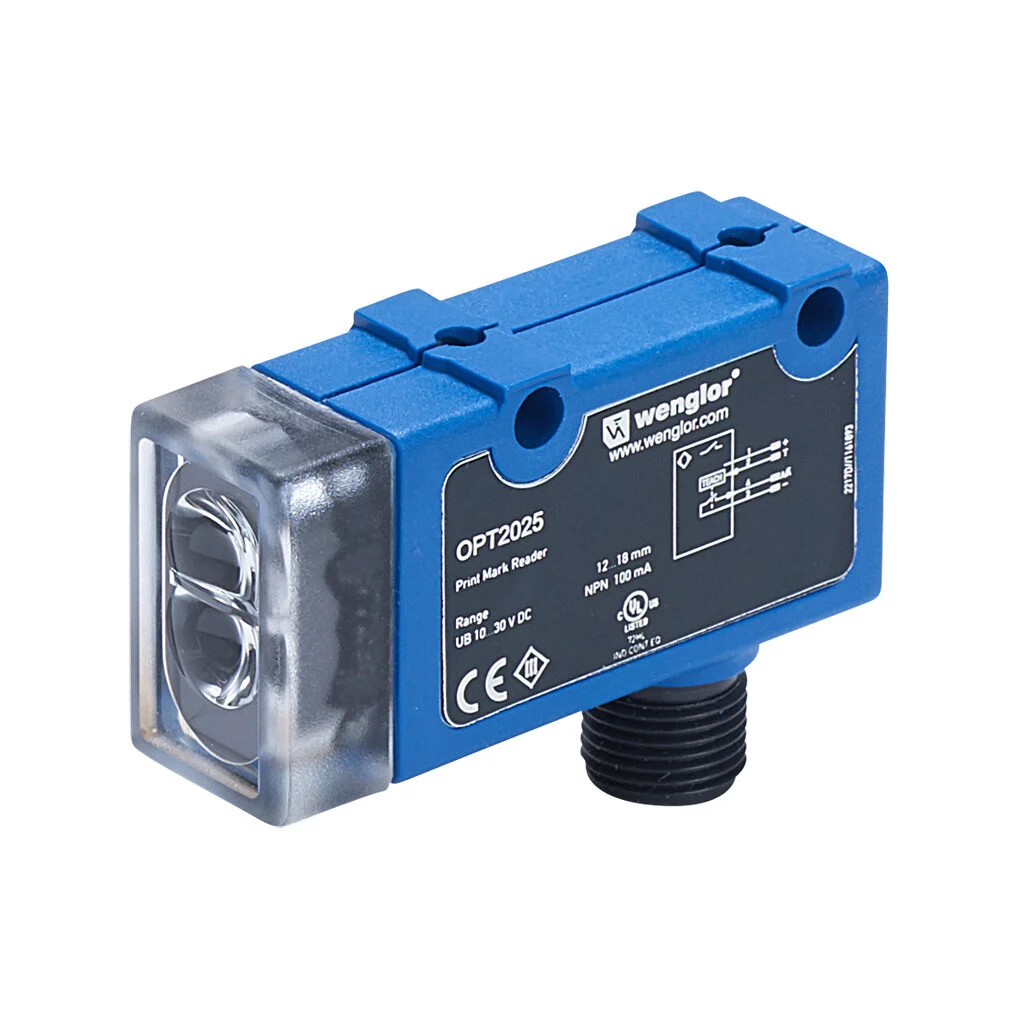

Wenglor photoelectric sensor, rectangular, diffuse, white, 12-18mm sensing distance, selectable light-on/dark-on, NPN, 5 kHz switching frequency, 54.5 x 27 x 16mm body, plastic, 4-pin M12 quick-disconnect.
Product Attribute Table
Shape : Rectangular
IP Rating : IP67
Application : Color and print mark and standard duty
Housing Size : 54.5 x 27 x 16mm body
Housing Material : Plastic
Sensing Method : Diffuse
Sensor Type : Contrast
Operating Voltage : 10-30 VDC
Switching Output : NPN
Sensing Distance : 12-18mm
Operation Mode : Selectable light-on/dark-on
Switching Frequency : 5 kHz
Light Emission : White
IO-Link Compatible : No
User Interface : Pushbutton
Connection : 4-pin M12 quick-disconnect
Additional Information : Purchase cable separately
