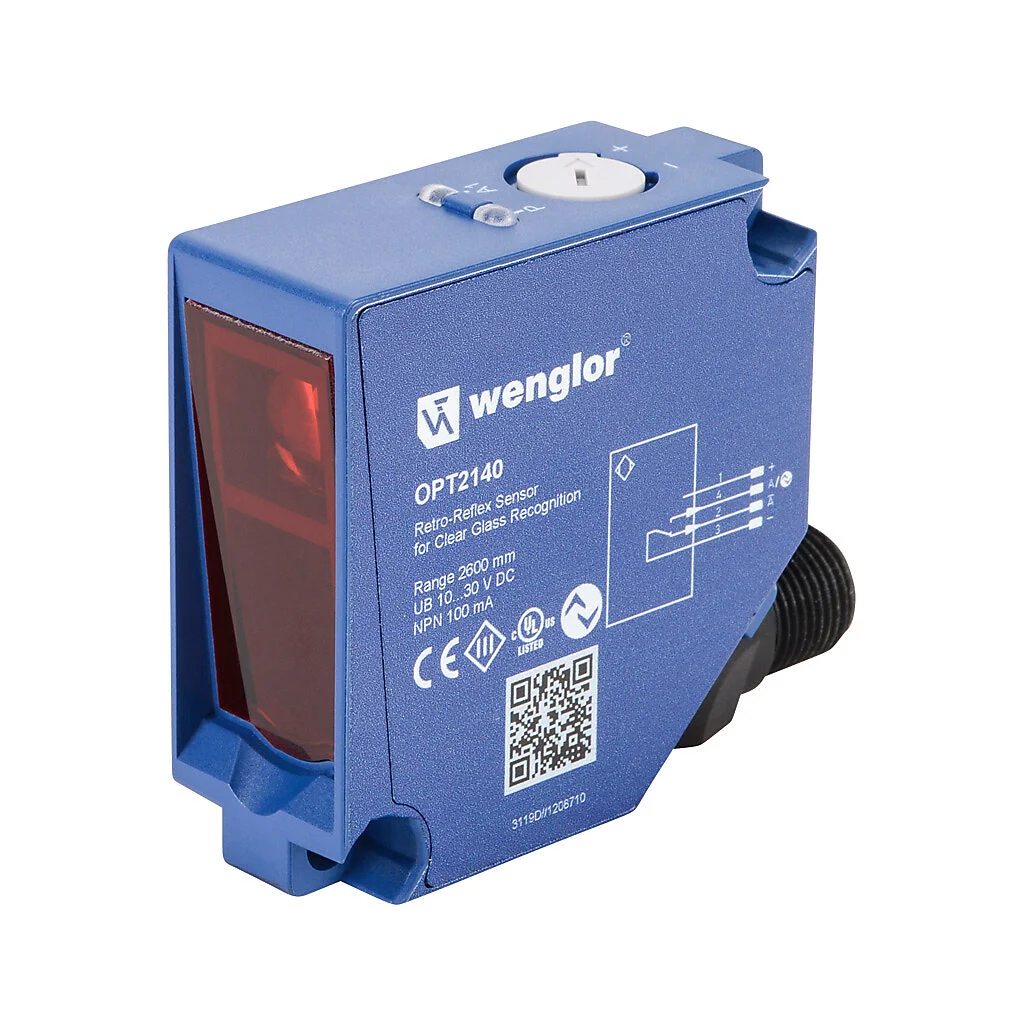

OPT2140

Wenglor photoelectric sensor, square, retroreflective, visible red, 0-2.6m sensing distance, complementary light-on/dark-on, NPN, potentiometer and IO-Link, 4-wire, 4-pin M12 quick-disconnect.

Product Attribute Table

Shape : Square
IP Rating : IP67 IP68
Application : Clear object, standard duty and IO-Link
Housing Size : 50 x 50 x 20mm body
Housing Material : Plastic
Sensing Method : Retroreflective
Sensor Type : Clear object detection
Operating Voltage : 10-30 VDC
Switching Output : NPN
Sensing Distance : 0-2.6m
Operation Mode : Complementary light-on/dark-on
Switching Frequency : 2000 Hz
Light Emission : Visible red
IO-Link Compatible : Yes
Sensitivity : Yes
User Interface : Potentiometer and IO-Link
Connection : 4-pin M12 quick-disconnect
Number of Wires : 4
Communication Port and Connection Type(s) : 4-pin M12 A-coded (IO-Link) port(s)
Port Protocol(s) : IO-Link Class A Device
Port Speed(s) : IO-Link COM2
IO-Link Version : IO-Link v1.1
Standard I/O Mode Supported : Yes
Includes : Mounting hardware
Additional Information : Purchase cable and reflector separately
