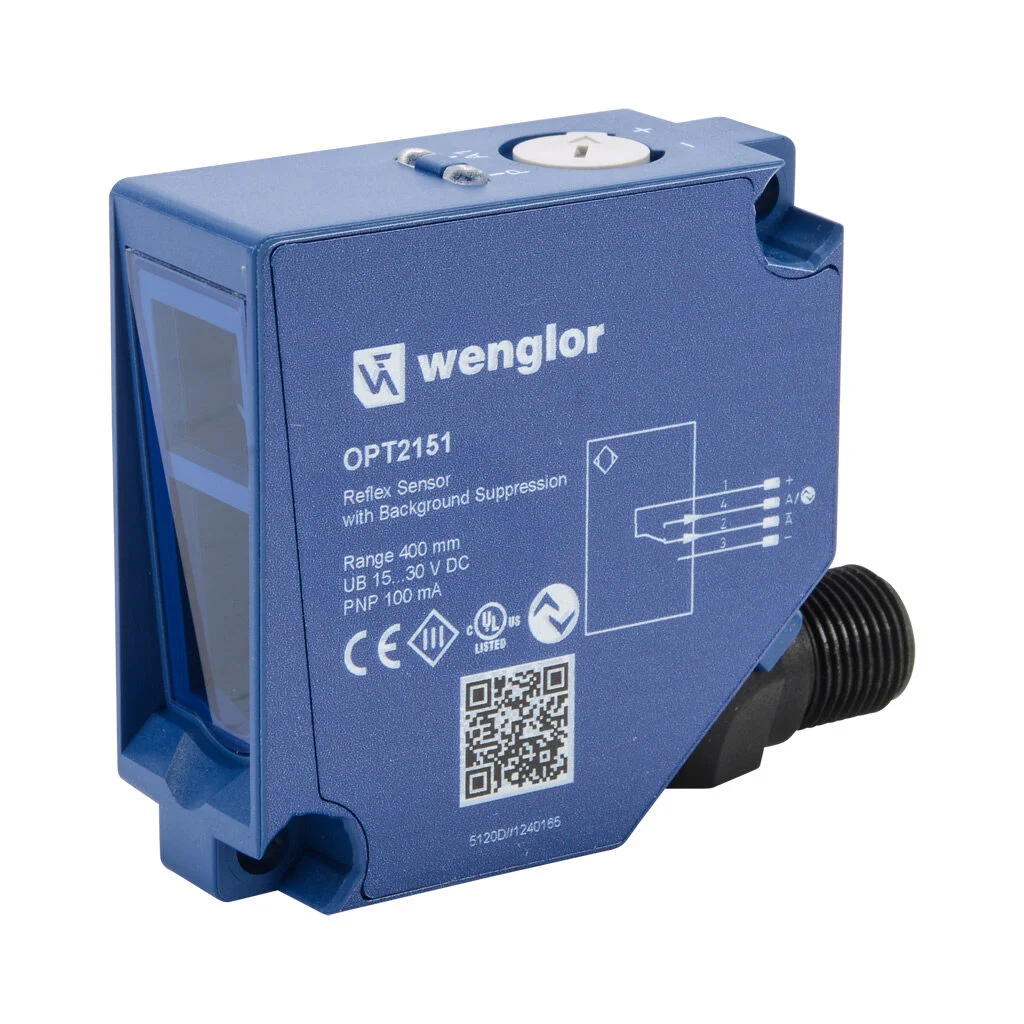

Wenglor photoelectric sensor, square, background suppression, blue, 50-400mm sensing distance, complementary light-on/dark-on, PNP, potentiometer and IO-Link, 50 x 50 x 20mm body, plastic, 4-pin M12 quick-disconnect.
Product Attribute Table
Shape : Square
IP Rating : IP67 IP68
Application : Dark and shiny, standard duty and IO-Link
Housing Size : 50 x 50 x 20mm body
Housing Material : Plastic
Sensing Method : Background suppression
Sensing Technology : Shiny object detection
Sensor Type : Shiny object detection
Operating Voltage : 15-30 VDC
Switching Output : PNP
Sensing Distance : 50-400mm
Operation Mode : Complementary light-on/dark-on
Switching Frequency : 800 Hz
Light Emission : Blue
IO-Link Compatible : Yes
User Interface : Potentiometer and IO-Link
Connection : 4-pin M12 quick-disconnect
Number of Wires : 4
Communication Port and Connection Type(s) : 4-pin M12 A-coded (IO-Link) port(s)
Port Protocol(s) : IO-Link Class A Device
Port Speed(s) : IO-Link COM2
IO-Link Version : IO-Link v1.1
Standard I/O Mode Supported : Yes
Includes : Mounting hardware
Additional Information : Purchase cable separately
