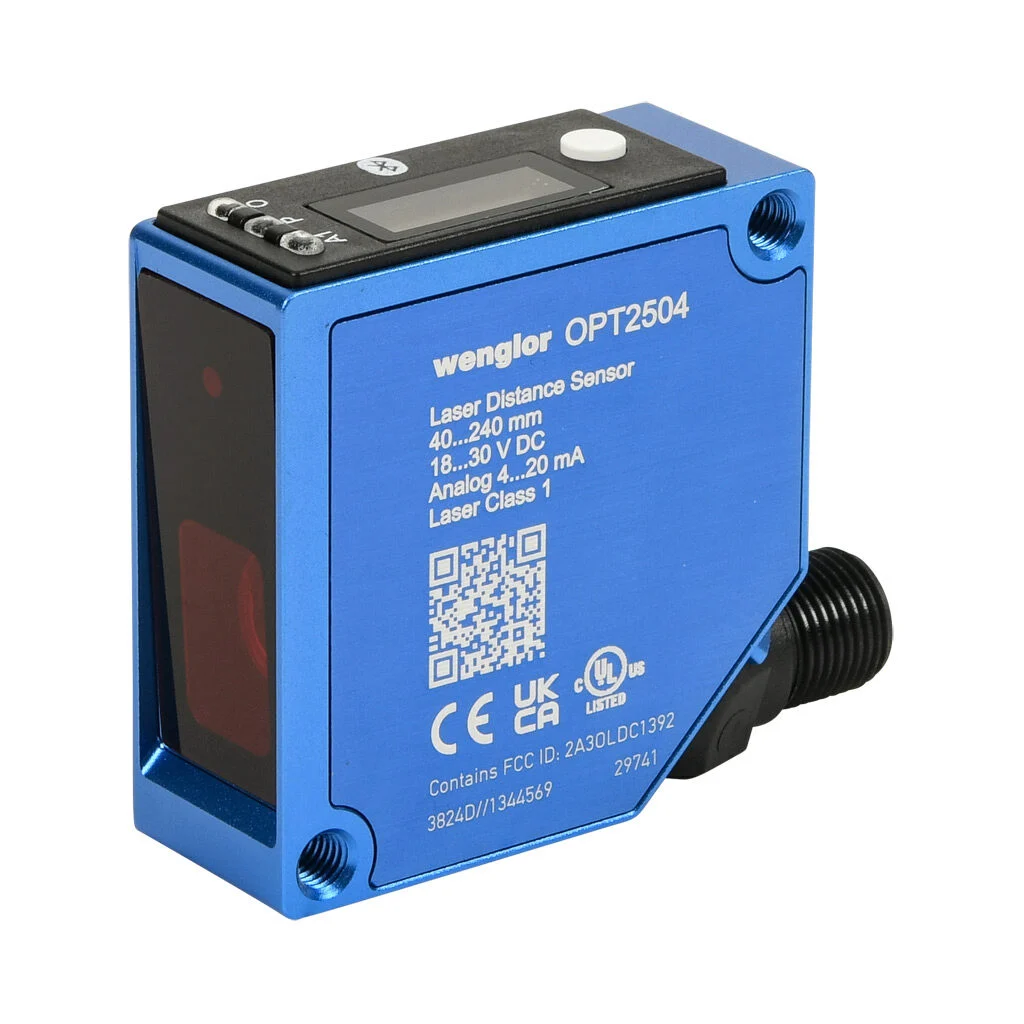

Wenglor photoelectric sensor, square, diffuse, Class 1 red laser, 40-240mm sensing distance, 50 x 50 x 20mm body, aluminum, 5-pin M12 quick-disconnect.
Product Attribute Table
Shape : Square
IP Rating : IP67
Application : Laser, measurement, standard duty, analog output and IO-Link
Housing Size : 50 x 50 x 20mm body
Housing Material : Aluminum
Sensing Method : Diffuse
Sensing Technology : Triangulation
Sensor Type : Distance measuring
Operating Voltage : 18-30 VDC
Analog Output : 4-20 mA
Sensing Distance : 40-240mm
Measuring Rate : 2500/s
Light Emission : Class 1 red laser
IO-Link Compatible : Yes
User Interface : Pushbutton user interface with display
Connection : 5-pin M12 quick-disconnect
Number of Wires : 5
Communication Port and Connection Type(s) : 5-pin M12 A-coded (IO-Link) port(s)
Port Protocol(s) : IO-Link Class A Device
Port Speed(s) : IO-Link COM3
IO-Link Version : IO-Link v1.1
Standard I/O Mode Supported : Yes
Includes : Mounting hardware
Additional Information : Purchase cable separately
