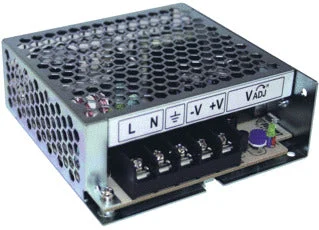

Orcon direct current power supply unit. (wxdxh), 51x79x28mm. 1st Secondary voltage 22-272V. Voltage type supply voltage AC/DC. Max output current 1 1A. Nominal output voltage 1 24V. Protection degree (IP): other.
Specifications
Voltage type of supply voltage : AC/DC
1st secondary output voltage at AC (V) : 22 V to 27.2 V
1st secondary output voltage at DC (V) : 22 V to 27.2 V
Max. output current 1 (A) : 1.1
Secondary voltage adjustable : Yes
Nominal value output voltage 1 (V) : 24
Nominal value output current 1 (A) : 1.1
Rated voltage AC (V) : 88 V to 264 V
Rated voltage (AC 60 Hz) (V) : 88 V to 264 V
Rated voltage DC (V) : 125 V to 373 V
Electrical connection : Screw connection
Output voltage stabilized : Yes
Power output (W) : 26.4
Stabilized : Yes
Short-circuit-proof : Yes
Suitable for safety functions : No
SIL (IEC 61508) : None
Refurbished : No
Modular version : No
Direct mounting possible : No
Wall mounting possible : No
Rail mounting possible : No
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 28
