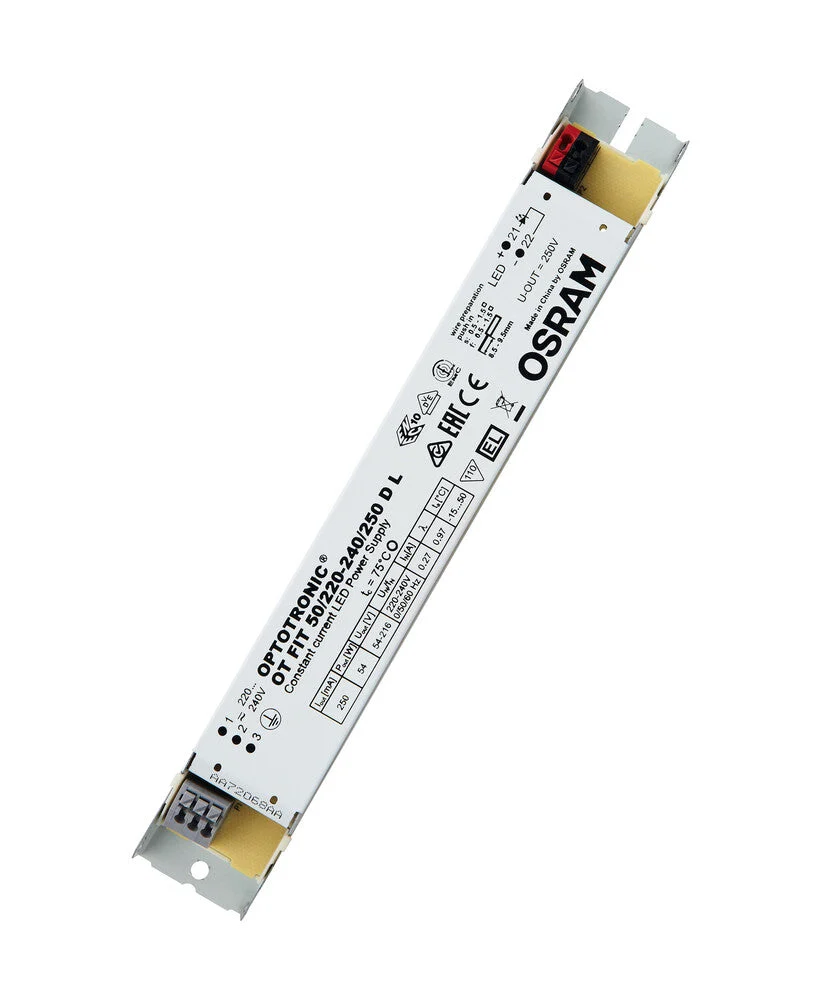

Linear / Area Constant Current – Non-dimmable. Product features include a line frequency of 0 Hz, 50 Hz, or 60 Hz. This product is versatile due to its output power range of up to 50 W. The supply voltage is 220-240 V. It is also available with an output current range of up to 350 mA. These are non-isolated drivers.
The product benefits from a small housing design and fixed current. It has a lifetime of up to 100,000 hours (temperature at Tc = 65°C, with a maximum 10% failure rate). The light’s high quality stems from its low output ripple current and high efficiency. It fulfills safety requirements due to overload, overtemperature, and Hot Plug protection.
The product is suited for linear lighting in offices, education, industry, storage areas, and retail. It’s also suitable for installation in emergency lighting systems according to IEC 61347-2-13, appendix J. It can also be installed in emergency lighting systems according to EN 60598-2-22. This product is suitable for luminaires of protection class I.
Specifications
Model : Static
Suitable for outdoor use : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DSI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
Constant light output (CLO) : No
No dim function : Yes
Housing : Metal housing
Suitable for constant current : Yes
Suitable for constant voltage : No
Output voltage (V) : 54 V to 216 V
Output current (mA) : 250 mA to 250 mA
Suitable for DC-voltage (primary side) : Yes
Output power (W) : 5 W to 13 W
Degree of protection (IP) : IP20
Protection class : I
Length (mm) : 210
Width (mm) : 30
Height (mm) : 21
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : Yes
