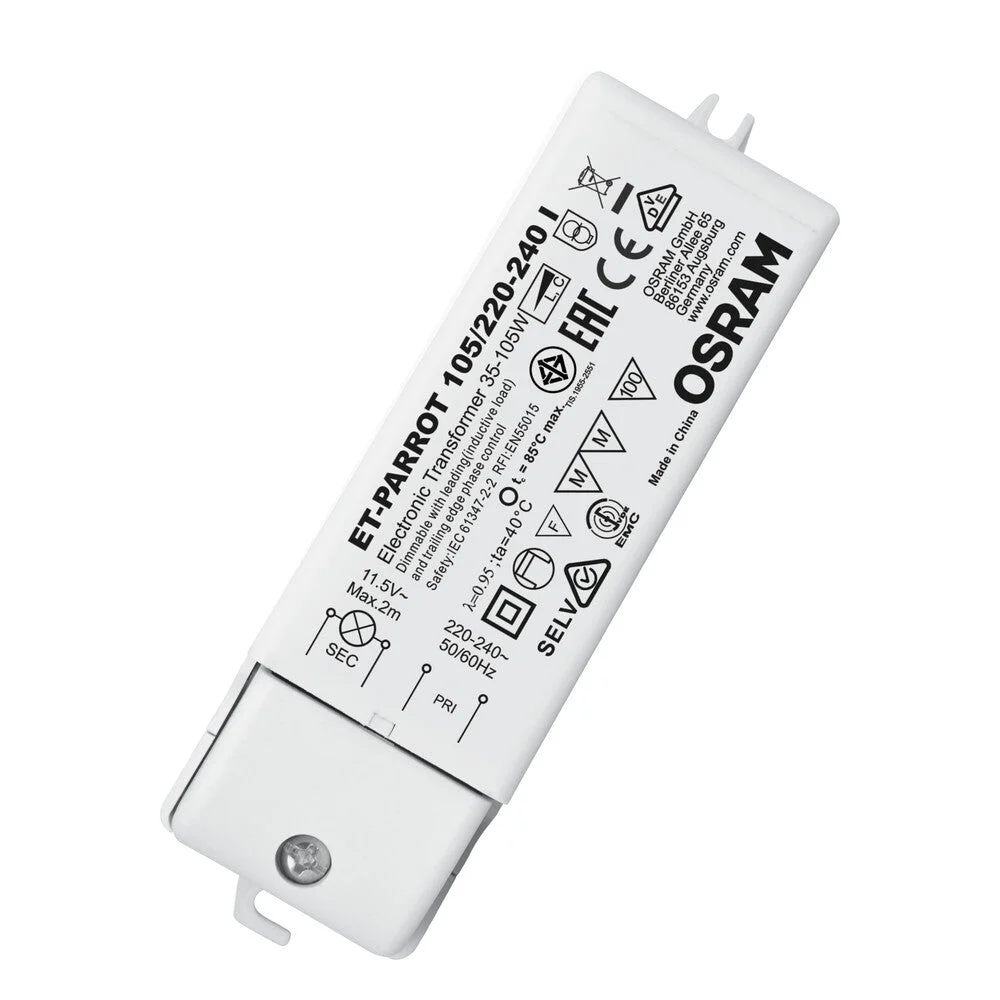

Osram Parrot Transformer Low-Voltage Lighting System – 4008321111579

Electronic transformers for low-voltage halogen lamps. Product features include line frequency of 50 to 60 Hz, RI suppression to EN 55015 (A1: 2007)/CISPR 15, EN 55022, and line harmonics according to EN 61000-3-2. They also have immunity according to EN 61547, energy efficiency of 91% or more (according to ErP regulation 2012/1194/EC), and safety to EN 61347. The transformers come with short-circuit protection, overload protection, overtemperature protection, and are electronically reversible. They provide electrical isolation between the primary side and the secondary side. Note: Switching between electronic transformer and lamp is not permitted. These transformers are dimmable on the leading edge and trailing edge.

The product benefits include very low power loss due to high efficacy and protective operation throughout the entire partial-load range for prolonged lamp life.

Areas of application can be:

• effect and accent lighting
• living rooms
• object lighting
• conference rooms
• restaurants
• recessed and surface-mounted furniture lights
• shop lighting
• event rooms

Specifications

Type of transformer : Electronic transformer
Safety transformer : Yes
Input voltage (V) : 220 V to 240 V
Output voltage (V) : 11.5 V to 11.5 V
Power (W) : 35 W to 105 W
No dim function : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DSI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : Yes
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
Degree of protection (NEMA) : 1
Connection type primary side : Screw connection
Connection type secondary side : Screw connection
Surface-mounted : Yes
Built-in : Yes
Material : Plastic
Color : White
Short-circuit protected : Yes
Overload protection : Yes
Overtemperature protection : Yes
With secondary automatic circuit breaker : Yes
Number of output positions (pairs) : 2
Length (mm) : 128
Width (mm) : 38
Height (mm) : 31
Degree of protection (IP) : IP20
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : Yes
