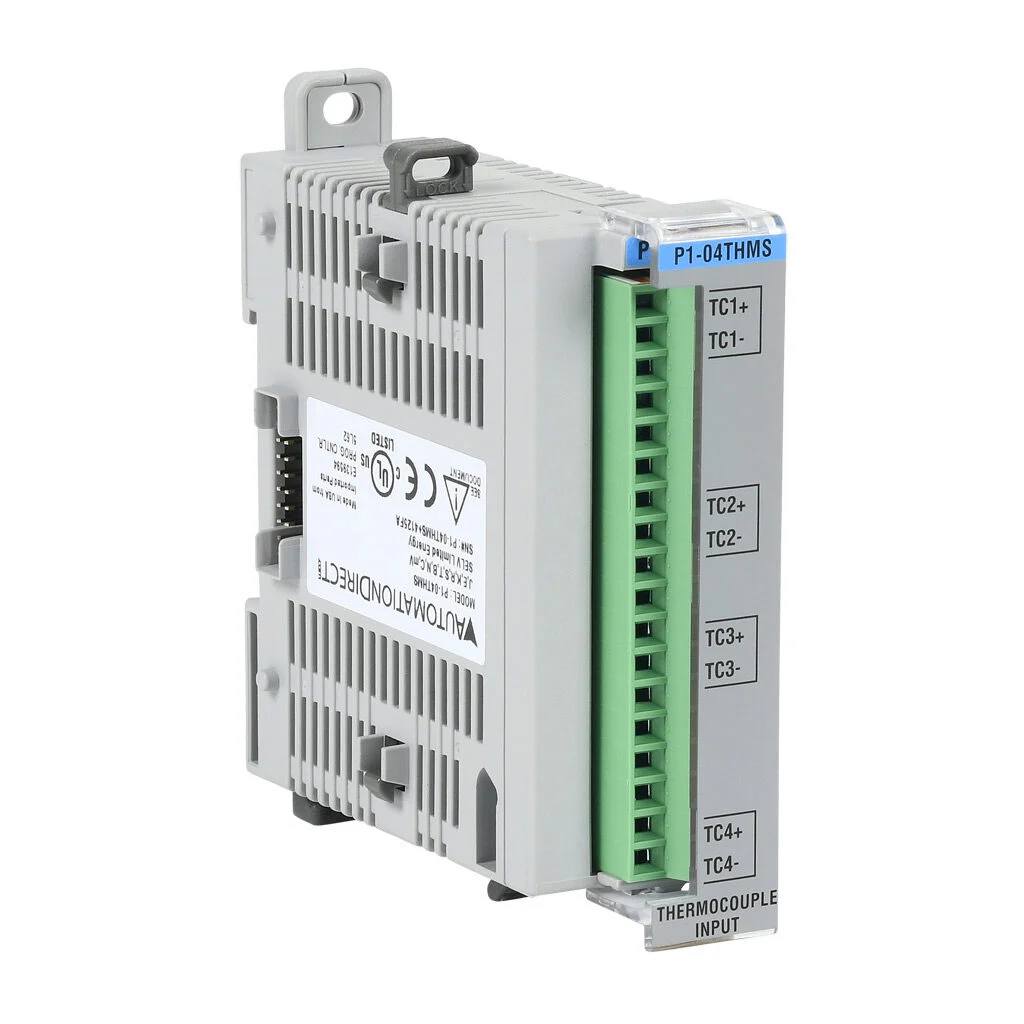

Productivity1000 temperature input module, thermocouple, 4-channel, 16-bit resolution, isolated, input thermocouple type(s): J, E, K, R, S, T, B, N, C. (1) P2-RTB screw terminal block included.
Product Attribute Table
I/O Module Type : Temperature
Input Signal Type(s) : Thermocouple
Number Of Input Channels : 4
Input Thermocouple Signal Type : J, E, K, R, S, T, B, N, C
Input Voltage Signal Range : 0-1.25 VDC, 0-39.0625 mVDC, +/- 39.0625 mVDC, +/- 78.125 mVDC, 0-156.25 mVDC and +/- 156 mVDC
Isolated Channels : Yes
Input Resolution : 16-bit
Includes : P2-RTB screw terminal block
Programming Software : Productivity Suite programming software v4.6 or later
Additional Information : Optional P2-RTB-1 spring clamp terminal block sold separately. Pre-wired ZIPLinks not available for temperature modules
