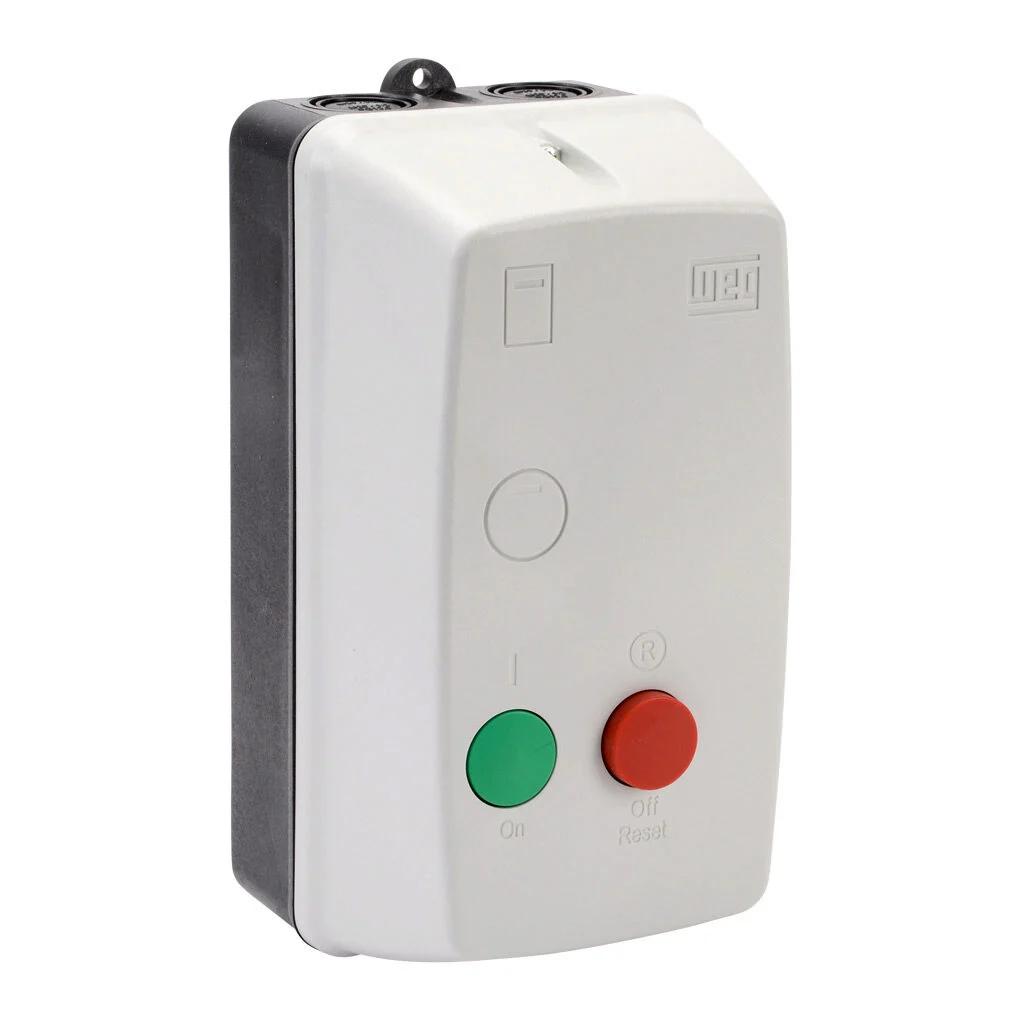

WEG Electric PESW series non-combination motor starter, 40A, 3-pole, 208-240 VAC (60Hz)/180-208 VAC (50Hz) coil voltage, bi-metallic, 25.0-40.0A adjustable, NEMA 4/4X.
Product Attribute Table
Series : PESW
Starter Type : Non-combination
Coil Voltage : 208-240 VAC (60Hz)/180-208 VAC (50Hz)
Amperage Rating : 40A
Voltage Rating : 600 VAC
Horsepower Rating : 20hp
Overload Type : Bi-metallic
Full Load Amperage Range : 25.0-40.0A adjustable
Number of Poles : 3
Power Poles : N.O.
Auxiliary Contacts : N.O./(1) N.C.
Trip Class : Trip Class 10
Phase Loss Sensitive : Yes
Ground Fault Protection : No
SCCR Rating : 5kA SCCR
UL Rating : UL 508 rated
Enclosure Type : NEMA 4/4X
Mounting : Wall
Connection : Screw terminal
Includes : Start, stop and reset pushbuttons
