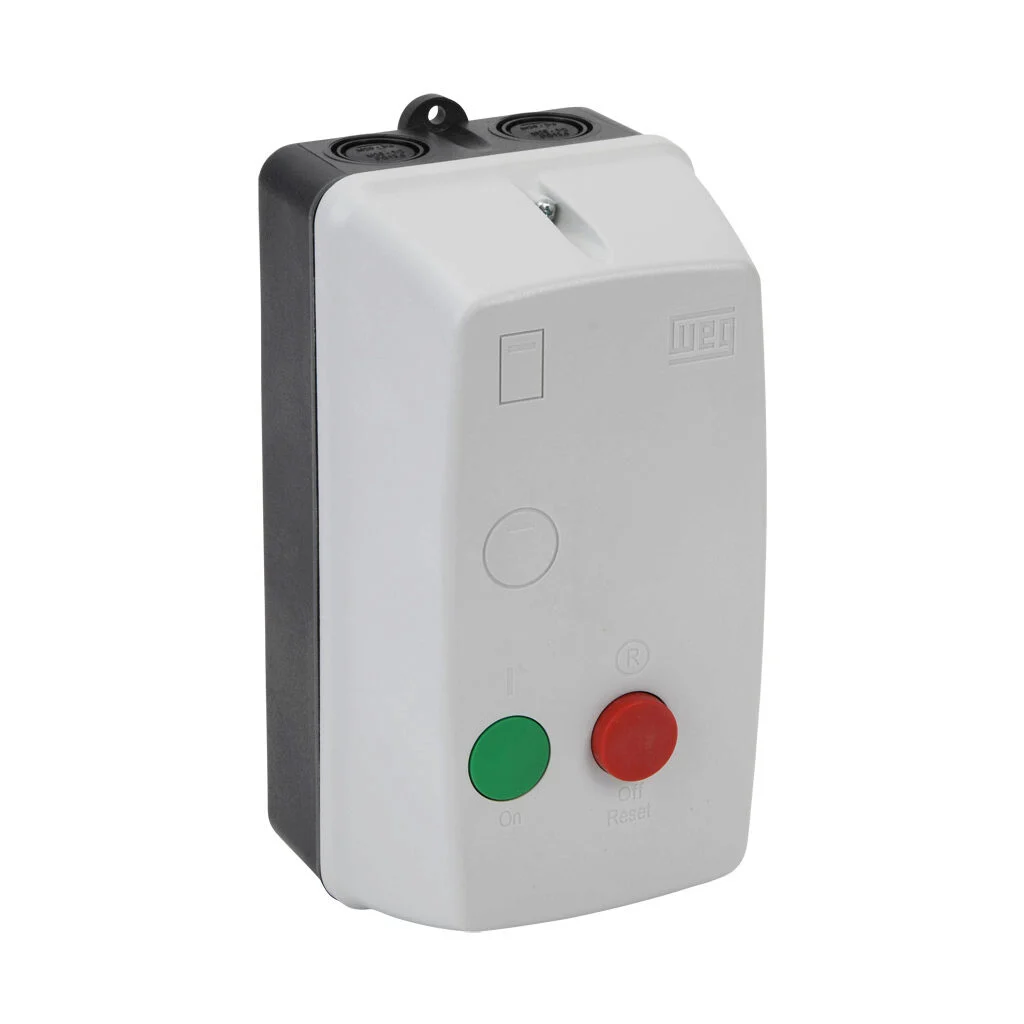

WEG Electric PESWS series non-combination motor starter, 25A, 2-pole, 208-240 VAC (60Hz)/180-208 VAC (50Hz) coil voltage, bi-metallic, 15.0-23.0.A Adjustable, NEMA 4/4X.
Product Attribute Table
Series : PESWS
Starter Type : Non-combination
Coil Voltage : 208-240 VAC (60Hz)/180-208 VAC (50Hz)
Amperage Rating : 25A
Voltage Rating : 600 VAC
Horsepower Rating : 3hp
Overload Type : Bi-metallic
Full Load Amperage Range : 15.0-23.0.A Adjustable
Number of Poles : 2
Power Poles : N.O.
Auxiliary Contacts : N.O./(1) N.C.
Trip Class : Trip Class 10
Phase Loss Sensitive : Yes
Ground Fault Protection : No
SCCR Rating : 5kA SCCR
UL Rating : UL 508 rated
Enclosure Type : NEMA 4/4X
Mounting : Wall
Connection : Screw terminal
Includes : Start, stop and reset pushbuttons
