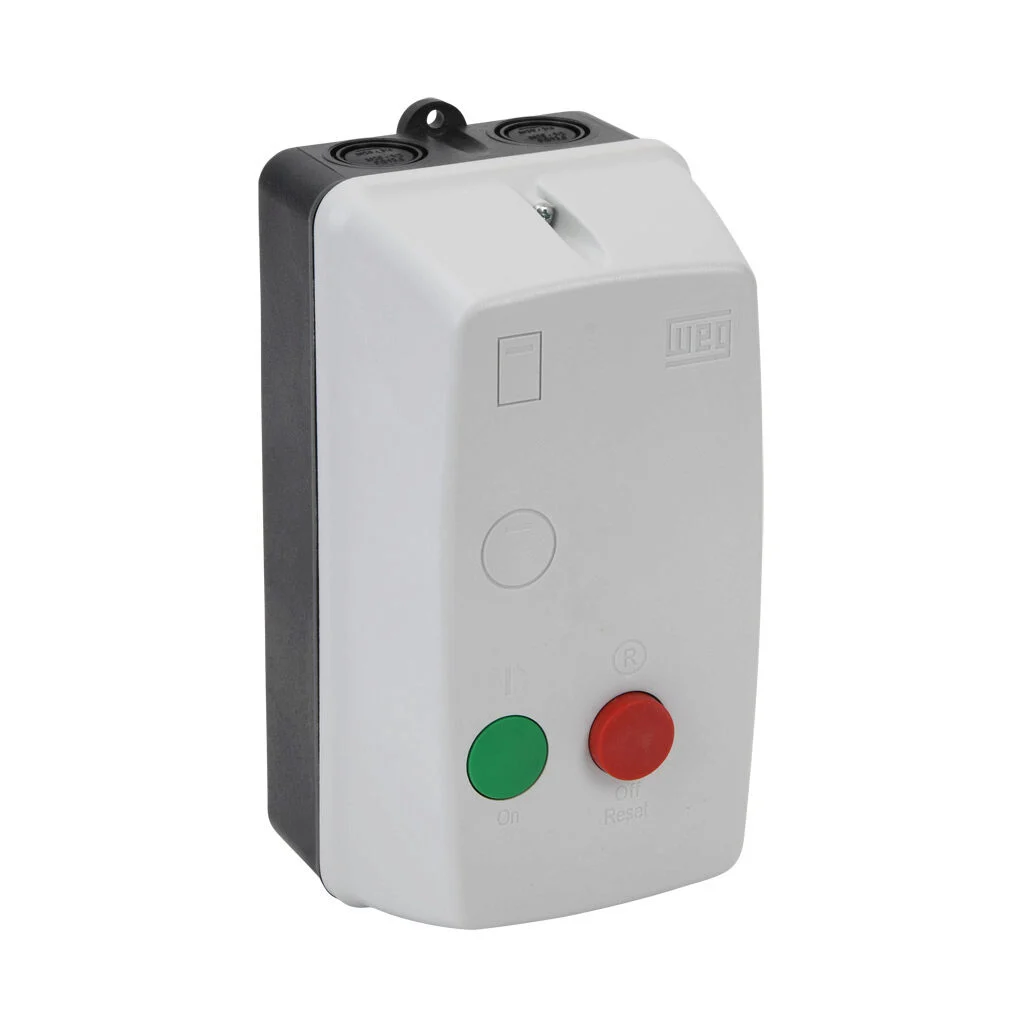

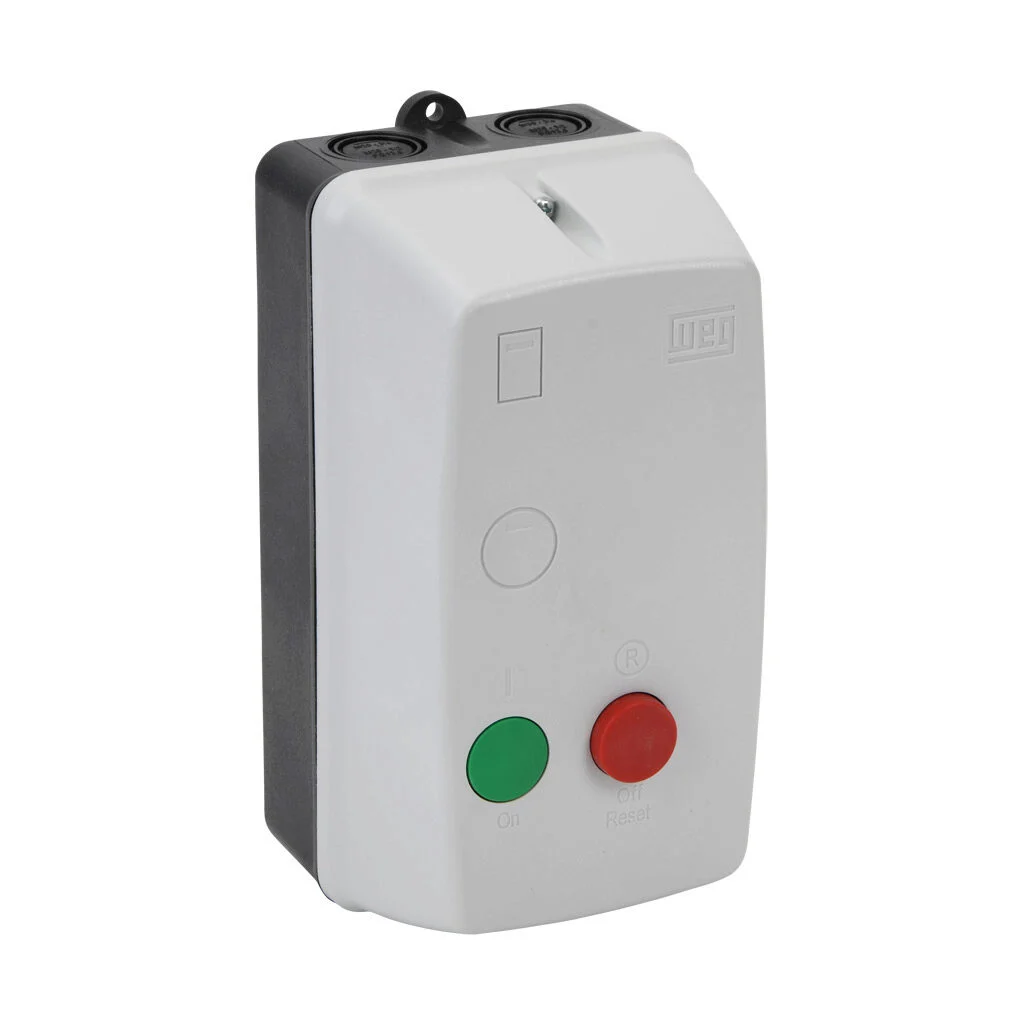

WEG Electric PESWS series non-combination motor starter, 9A, 2-pole, 120 VAC (50/60Hz) coil voltage, bi-metallic, 7.0-10.0A Adjustable, NEMA 4/4X.
Product Attribute Table
Series : PESWS
Starter Type : Non-combination
Coil Voltage : 120 VAC (50/60Hz)
Amperage Rating : 9A
Voltage Rating : 600 VAC
Horsepower Rating : 1-1/2hp
Overload Type : Bi-metallic
Full Load Amperage Range : 7.0-10.0A Adjustable
Number of Poles : 2
Power Poles : N.O.
Auxiliary Contacts : N.O./(1) N.C.
Trip Class : Trip Class 10
Phase Loss Sensitive : Yes
Ground Fault Protection : No
SCCR Rating : 5kA SCCR
UL Rating : UL 508 rated
Enclosure Type : NEMA 4/4X
Mounting : Wall
Connection : Screw terminal
Includes : Start, stop and reset pushbuttons
