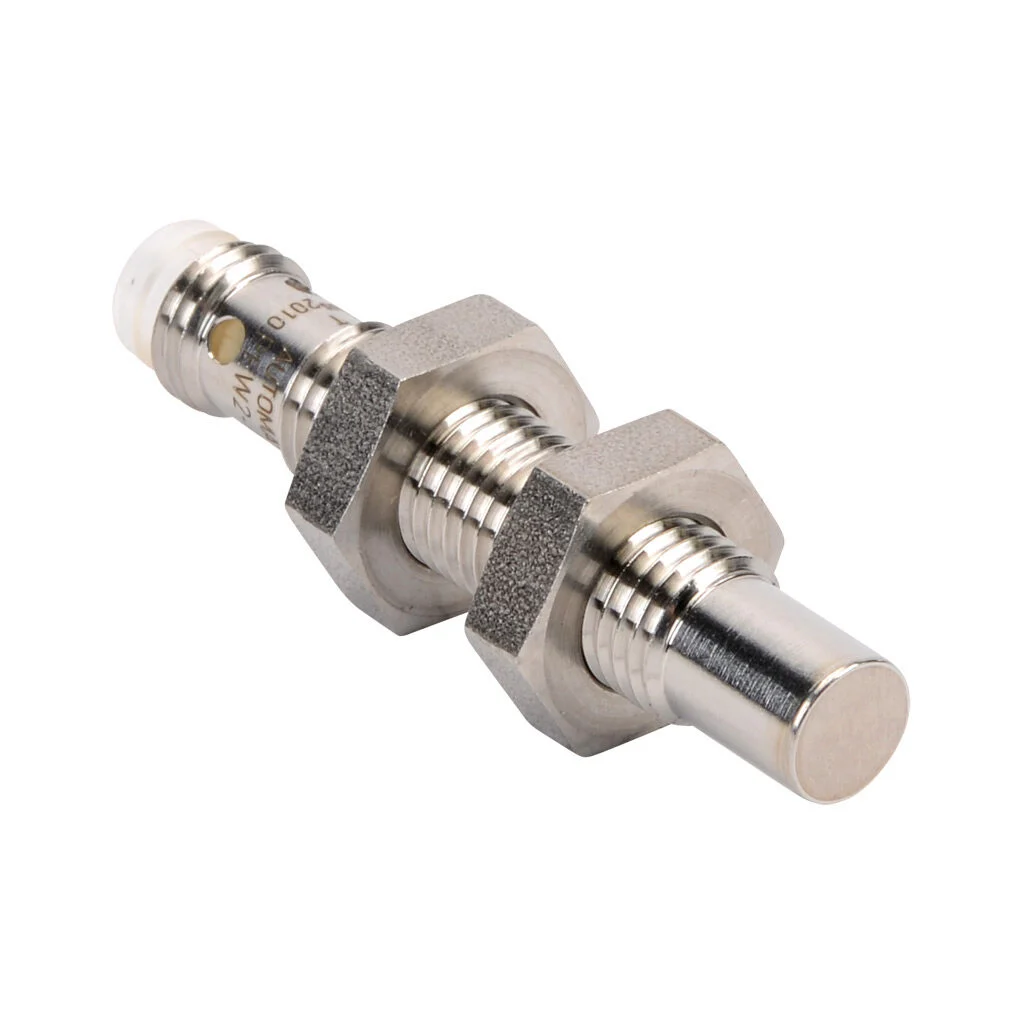

ProSense inductive proximity sensor, tubular, 8mm diameter x 45mm body, stainless steel housing, NPN, N.O. output, 5mm sensing distance, non-flush, 500 Hz switching frequency, IP65 IP66 IP67 IP68 IP69K, 3-pin M8 quick-disconnect.
Product Attribute Table
Sensor Type : Inductive
Application : Harsh duty and full metal
Shape : Tubular
Housing Size : 8mm diameter x 45mm body
Housing Material : Stainless steel
Barrel Type : Threaded
Sensing Method : Extended sensing
Adjustable : No
Number of Wires : 3
Switching Output : NPN
Operation Mode : N.O. output
Sensing Distance : 5mm
Mounting Type : Non-flush
IO-Link Compatible : No
Switching Frequency : 500 Hz
Operating Voltage : 10-30 VDC
Weld Field Immune : No
IP Rating : IP65 IP66 IP67 IP68 IP69K
Connection : 3-pin M8 quick-disconnect
Includes : Mounting hardware
