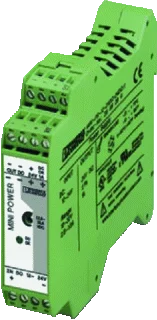

Phoenix contact (mini psdc series), dc transducer and 24v DC, din-rail assembly. The mini power supply from Phoenix contact is ideal to mcr (measurement control and regulation). Dc-dc converters can alter the voltage, regenerate voltage at the ends of long cables, or allow the creation of independent supply networks by electrical isolation.
Benefits and features:
For setting up independent supply networks, use electrical isolation. Constant voltage: Output voltage can be regenerated even when long cables are connected. Convert to different voltage levels Green led voltage display.
Specifications
Primary voltage 1 (V) : 10 V to 32 V
Primary voltage 2 (V) : 10 V to 32 V
Primary voltage 3 (V) : 10 V to 10 V
Number of phases : 1
Secondary voltage 1 (V) : 24
Rated power (VA) : 24
Degree of protection (IP) : IP20
Ring core : No
Modular version : No
Suitable for mounting on PCB : No
Degree of protection (NEMA) : Other
Place variable : No
Portable : No
With CEE wall socket : No
With plug : No
