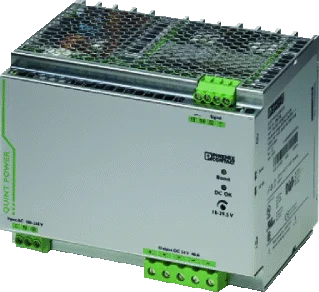

Primary-switched power supply unit for QUINT POWER. Screw connection, DIN rail mounting. SFB Technology (Selective Fuss Breaking). Input = 1-phase. Output = 24 VDC / 40 Am.
Specifications
Voltage type of supply voltage : AC
1st secondary output voltage at DC (V) : 24 V to 29.5 V
2nd secondary output voltage at DC (V) : 18 V to 18 V
Max. output current 1 (A) : 45
Max. output current 2 (A) : 45
Max. output current 3 (A) : 215
Secondary voltage adjustable : Yes
Nominal value output voltage 1 (V) : 24
Nominal value output current 1 (A) : 40
Rated voltage AC (V) : 85 V to 240 V
Rated voltage (AC 60 Hz) (V) : 100 V to 264 V
Rated voltage DC (V) : 90 V to 300 V
Electrical connection : Screw connection
Output voltage stabilized : Yes
Power consumption (VA) : 1157
Power output (W) : 960
Stabilized : Yes
Short-circuit-proof : Yes
Degree of protection (IP) : IP20
Suitable for safety functions : Yes
SIL (IEC 61508) : None
Refurbished : No
Modular version : No
Direct mounting possible : No
Wall mounting possible : No
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 130
Built-in width (mm) : 180
Degree of protection (NEMA) : Other
Width in number of modular spacings : 10
